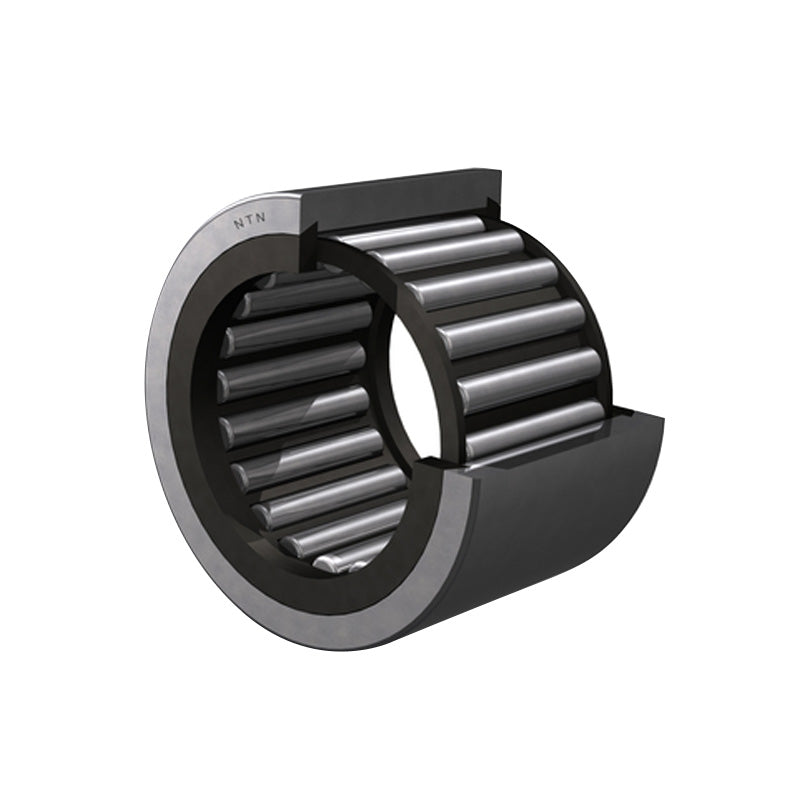

• NTN NK10/12T2 Machined Needle Roller Bearing with Polyamide Cage no Shaft Sleeve 10x17x12mm
1 1

SKU: NK10/12T2-NTN

NTN NK10/12T2 Machined Needle Roller Bearing with Polyamide Cage no Shaft Sleeve 10x17x12mm

NTN NK10/12T2 Machined Needle Roller Bearing with Polyamide Cage no Shaft Sleeve 10x17x12mm
€10,95 ex VAT
€10,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €7,57
4+ €7,15
9+ €7,06
19+ €6,98
49+ €6,89
99+ €6,81
499+ €6,38
999+ €6,30
1999+ €6,21
2999+ €6,13
4999+ €5,96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
CIAH7HM5FO
Brand / Quality:
NTN - High Quality
Inside Diameter:
10mm
Outside Diameter:
17mm
Width:
12mm
Technical
Fw - Under rollers diameter 10mm
D - Outside diameter 17mm
C - Width of bearing, drawn cup or outer ring 12mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 4.55 kN
C0r - Static load rating 5.1 kN
N - Grease lubrication limit speed 19000 tr/min
N - Oil lubrication limit speed 28000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
Da max - Outer ring maximum shoulder diameter 11.5mm
ras max - Maximum shaft & housing fillet radius 0.3mm
