SKU: NJ422/C3-SKF

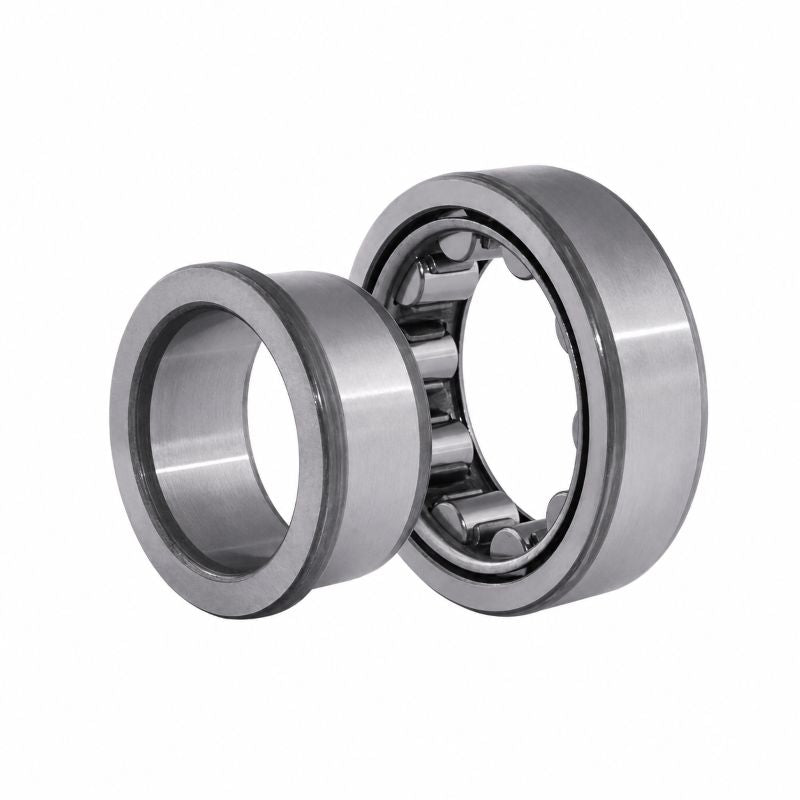

SKF NJ422C3 Single Row Cylindrical Roller Bearing 110x280x65mm
SKF NJ422C3 Single Row Cylindrical Roller Bearing 110x280x65mm
Out of stock
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 280mm
- Width:
- 65mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 110mm |
|---|---|
| D | 280mm |
| B | 65mm |
| Dynamic load C | 532 kN |
| Static load Co | 585 kN |
| Fatigue load limit Pu | 64 kN |
| Reference speed | 2600 rpm |
| Limiting speed | 3200 rpm |
| Weight | 20.3 kg |
| d1 | 171mm |
| D1 | 217mm |
| F,E | 155mm |
| r1r2 min | 0.4mm |
| r3r4 min | 4mm |
| S | 4.8mm |
| da min | 130mm |
| da max | 150mm |
| db | 174mm |
| Da max | 260mm |
| ra max | 3mm |
| rb max | 3mm |
| kr | 0.15 |
| Angle ring | HJ422 |
| Angle ring weight | 2.1 kg |
| B1 | 17mm |
| B2 | 29.5mm |
