SKU: NJ411/C3-SKF

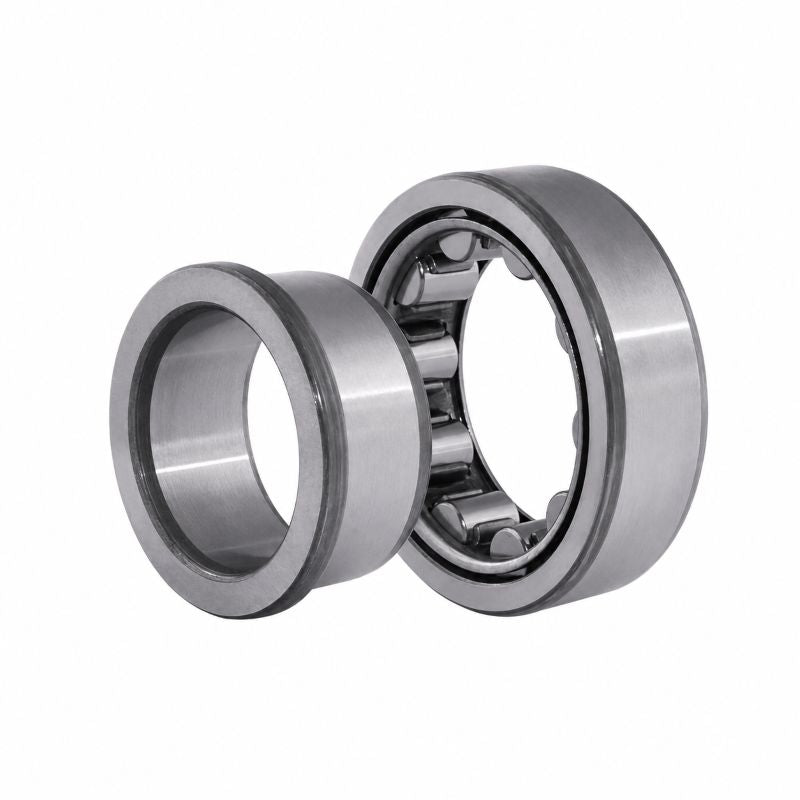

SKF NJ411C3 Single Row Cylindrical Roller Bearing 55x140x33mm
SKF NJ411C3 Single Row Cylindrical Roller Bearing 55x140x33mm
Out of stock
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 55mm |
|---|---|
| D | 140mm |
| B | 33mm |
| Dynamic load C | 142 kN |
| Static load Co | 140 kN |
| Fatigue load limit Pu | 18.6 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 6300 rpm |
| Weight | 2.55 kg |
| d1 | 85.2mm |
| D1 | 108mm |
| F,E | 77.2mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 2.6mm |
| da min | 69mm |
| da max | 74mm |
| db | 88mm |
| Da max | 126mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
