SKU: NJ234ECML/C3-SKF

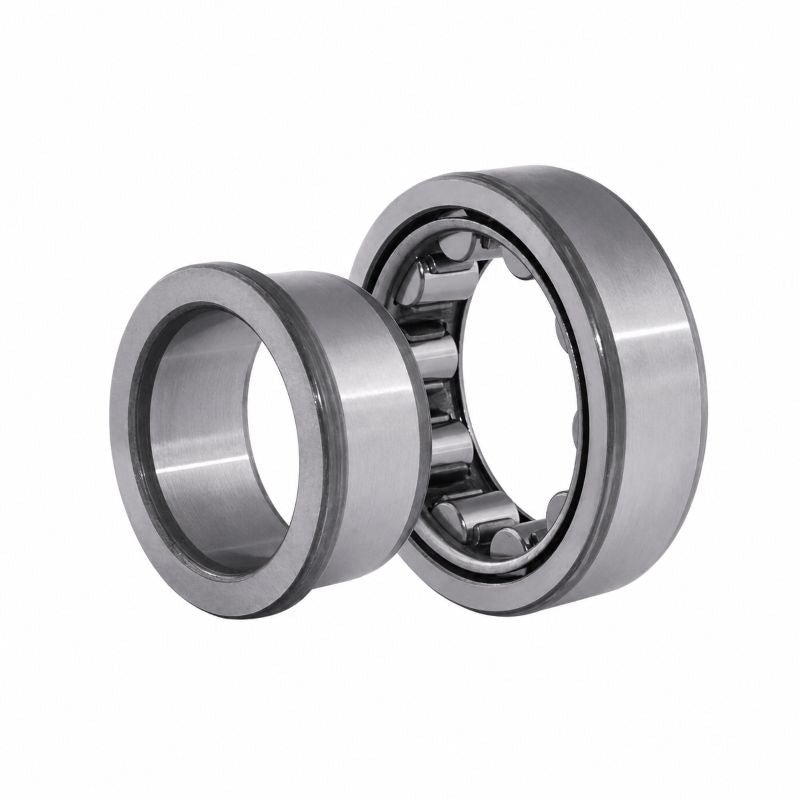

SKF NJ234ECMLC3 Single Row Cylindrical Roller Bearing with Brass Cage 170x310x52mm
SKF NJ234ECMLC3 Single Row Cylindrical Roller Bearing with Brass Cage 170x310x52mm
Out of stock
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 170mm
- Outside Diameter:
- 310mm
- Width:
- 52mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 170mm |
|---|---|
| D | 310mm |
| B | 52mm |
| Dynamic load C | 695 kN |
| Static load Co | 815 kN |
| Fatigue load limit Pu | 85 kN |
| Reference speed | 2200 rpm |
| Limiting speed | 2400 rpm |
| Weight | 18.6 kg |
| Alt cage | MA |
| d1 | 220mm |
| D1 | 268mm |
| F,E | 207mm |
| r1r2 min | 4mm |
| r3r4 min | 4mm |
| S | 2.9mm |
| da min | 187mm |
| da max | 203mm |
| db | 224mm |
| Da max | 293mm |
| ra max | 3mm |
| rb max | 3mm |
| kr | 0.15 |
| Angle ring | HJ234EC |
| Angle ring weight | 1.65 kg |
| B1 | 12mm |
| B2 | 20mm |
