SKU: NJ2340ECMA-SKF

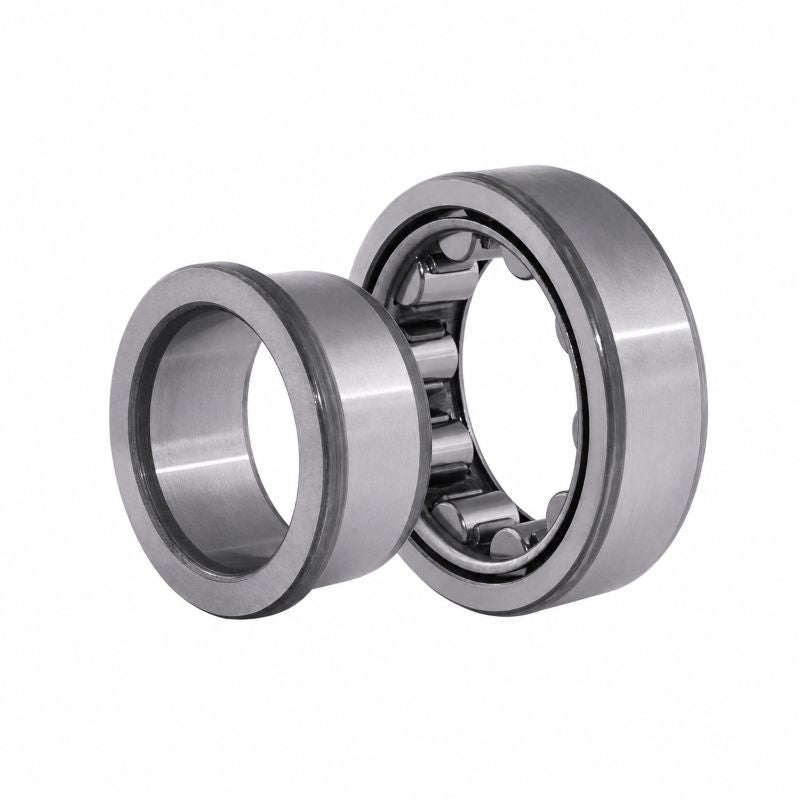

SKF NJ2340ECMA Single Row Cylindrical Roller Bearing with Brass Cage 200x420x138mm
SKF NJ2340ECMA Single Row Cylindrical Roller Bearing with Brass Cage 200x420x138mm
Out of stock
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 200mm
- Outside Diameter:
- 420mm
- Width:
- 138mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 200mm |
|---|---|
| D | 420mm |
| B | 138mm |
| Dynamic load C | 1980 kN |
| Static load Co | 2800 kN |
| Fatigue load limit Pu | 255 kN |
| Reference speed | 1400 rpm |
| Limiting speed | 2400 rpm |
| Weight | 97 kg |
| d1 | 278mm |
| D1 | 353mm |
| F,E | 253mm |
| r1r2 min | 5mm |
| r3r4 min | 5mm |
| S | 9.4mm |
| da min | 220mm |
| da max | 249mm |
| db | 280mm |
| Da max | 400mm |
| ra max | 4mm |
| rb max | 4mm |
| kr | 0.25 |
