SKU: NJ2334ECMA-SKF

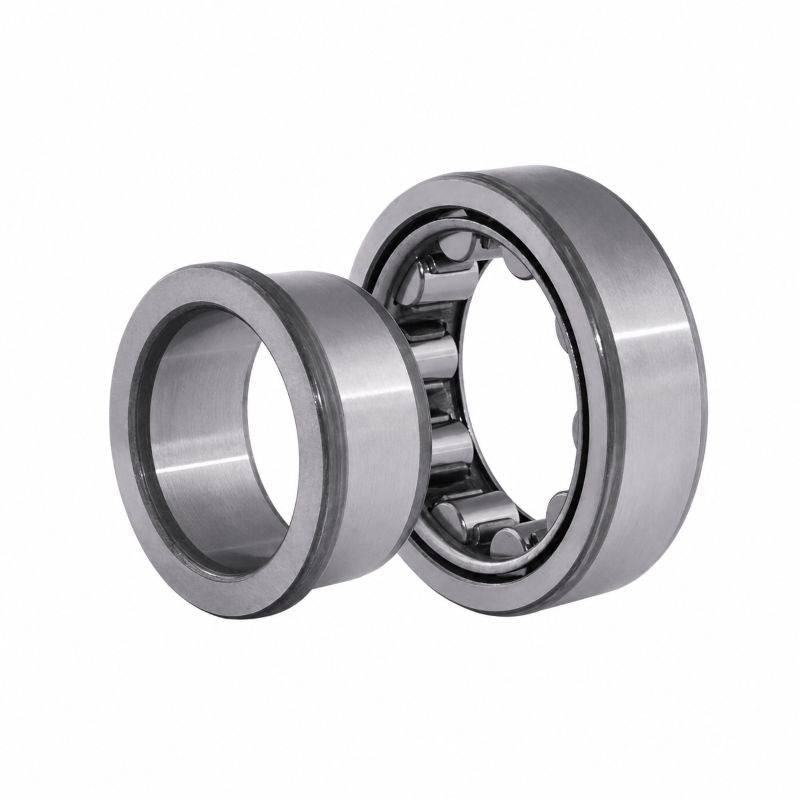

SKF NJ2334ECMA Single Row Cylindrical Roller Bearing with Brass Cage 170x360x120mm
SKF NJ2334ECMA Single Row Cylindrical Roller Bearing with Brass Cage 170x360x120mm
Out of stock
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 170mm
- Outside Diameter:
- 360mm
- Width:
- 120mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 170mm |
|---|---|
| D | 360mm |
| B | 120mm |
| Dynamic load C | 1450 kN |
| Static load Co | 2040 kN |
| Fatigue load limit Pu | 204 kN |
| Reference speed | 1700 rpm |
| Limiting speed | 3000 rpm |
| Weight | 63 kg |
| d1 | 234mm |
| D1 | 301mm |
| F,E | 216mm |
| r1r2 min | 4mm |
| r3r4 min | 4mm |
| S | 10mm |
| da min | 187mm |
| da max | 211mm |
| db | 238mm |
| Da max | 343mm |
| ra max | 3mm |
| rb max | 3mm |
| kr | 0.25 |
