SKU: NJ2320-EU

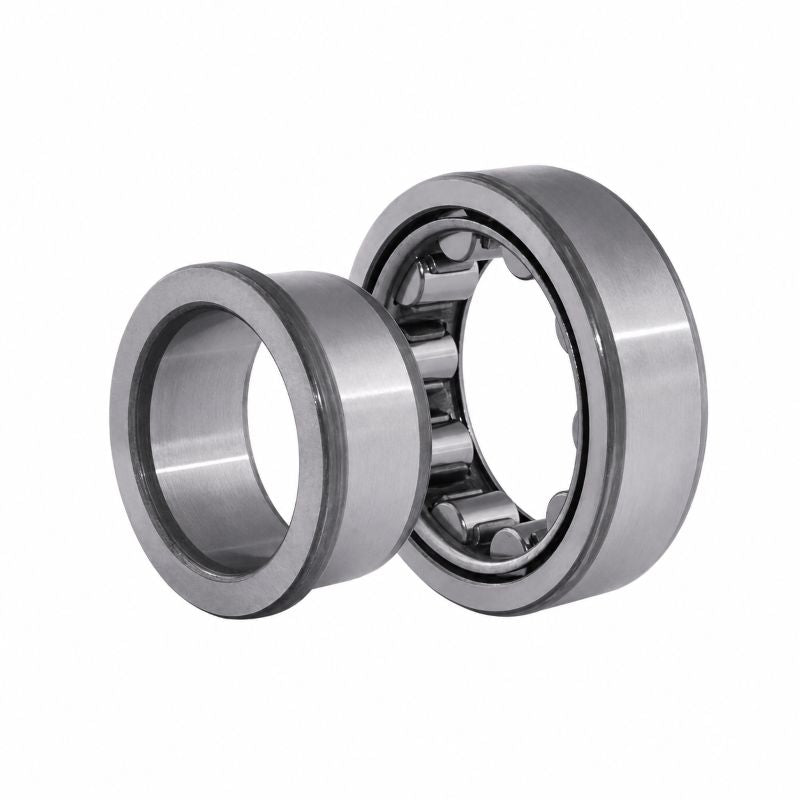

NJ2320 Budget Single Row Cylindrical Roller Bearing 100x215x73mm
NJ2320 Budget Single Row Cylindrical Roller Bearing 100x215x73mm
Out of stock
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 215mm
- Width:
- 73mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 100mm |
|---|---|
| D | 215mm |
| B | 73mm |
| Dynamic load C | 670 kN |
| Static load Co | 735 kN |
| Fatigue load limit Pu | 85 kN |
| Reference speed | 3200 rpm |
| Limiting speed | 3800 rpm |
| Weight | 12.2 kg |
| Cage options | J.ML |
| d1 | 139mm |
| D1 | 182mm |
| F, E | 127.5mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| s | 5.9mm |
| da min | 114mm |
| da max | 124mm |
| db min | 142mm |
| Da max | 201mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.25 |
| Angle ring | HJ2320EC |
| Angle ring weight | 0.93kg |
| B1 | 13mm |
| B2 | 23.5mm |
