SKU: NJ1076MA-SKF

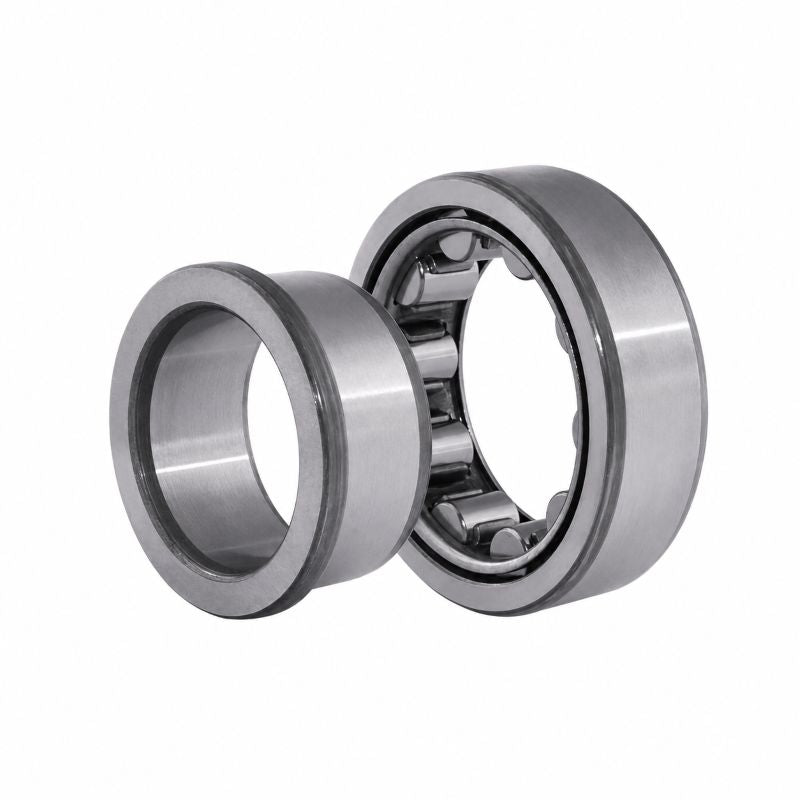

SKF NJ1076MA Single Row Cylindrical Roller Bearing with Brass Cage 380x560x82mm
SKF NJ1076MA Single Row Cylindrical Roller Bearing with Brass Cage 380x560x82mm
Out of stock
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 380mm
- Outside Diameter:
- 560mm
- Width:
- 82mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 380mm |
|---|---|
| D | 560mm |
| B | 82mm |
| Dynamic load C | 1140 kN |
| Static load Co | 1930 kN |
| Fatigue load limit Pu | 170 kN |
| Reference speed | 1200 rpm |
| Limiting speed | 1600 rpm |
| Weight | 73 kg |
| d1 | 443mm |
| D1 | 495mm |
| F,E | 425mm |
| r1r2 min | 5mm |
| r3r4 min | 5mm |
| S | 10.8mm |
| da min | 398mm |
| da max | 420mm |
| db | 448mm |
| Da max | 542mm |
| ra max | 4mm |
| rb max | 4mm |
| kr | 0.1 |
| Angle ring | HJ1076 |
| Angle Ring Weight | 8.25 kg |
| B1 | 21mm |
| B2 | 39.5mm |
