SKU: NJ1060MA-EU

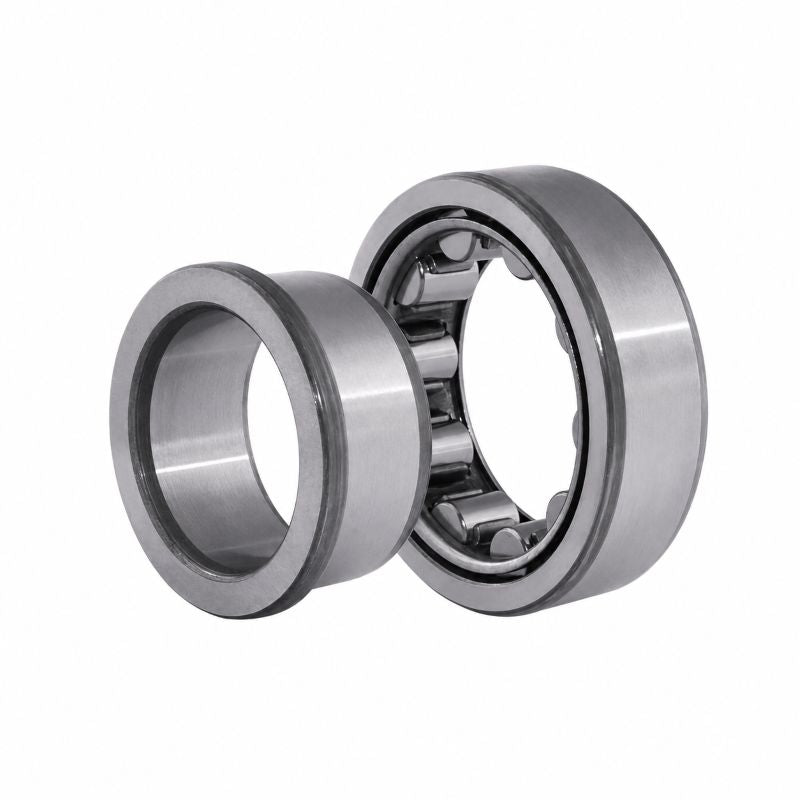

NJ1060 Budget Single Row Cylindrical Roller Bearing 300x460x74mm
NJ1060 Budget Single Row Cylindrical Roller Bearing 300x460x74mm
Out of stock
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 300mm
- Outside Diameter:
- 460mm
- Width:
- 74mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 300mm |
|---|---|
| D | 460mm |
| B | 74mm |
| Dynamic load C | 858 kN |
| Static load Co | 1370 kN |
| Fatigue load limit Pu | 129 kN |
| Reference speed | 1500 rpm |
| Limiting speed | 2000 rpm |
| Weight | 47 kg |
| d1 | 356mm |
| D1 | 402mm |
| F, E | 340mm |
| r1r2 min | 4mm |
| r3r4 min | 4mm |
| s | 9.7mm |
| da min | 317mm |
| da max | 335mm |
| db min | 360mm |
| Da max | 443mm |
| ra max | 3mm |
| rb max | 3mm |
| kr | 0.1 |
| Angle ring | HJ1060 |
| Angle ring weight | 5.3kg |
| B1 | 19mm |
| B2 | 36mm |
