SKU: NATV40LL/3AS-NTN

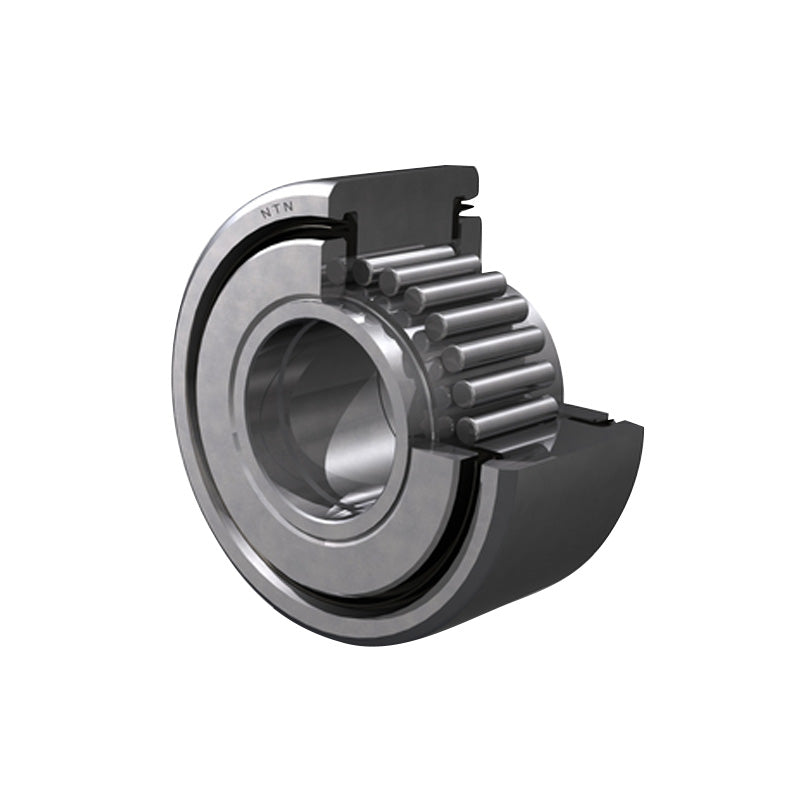

NTN NATV40LL/3AS Yoke Type Track Roller with Inner Race 40x80x30mm
NTN NATV40LL/3AS Yoke Type Track Roller with Inner Race 40x80x30mm
Regular price
€70,95
ex VAT
Regular price
Sale price
€70,95
ex VAT
In stock
Price Break
3+
€53,46
4+
€50,46
9+
€49,86
19+
€49,26
49+
€48,66
99+
€48,06
499+
€45,05
999+
€44,45
1999+
€43,85
2999+
€43,25
4999+
€42,05
Quantity
Couldn't load pickup availability
Share this product
Description
Description
NTN NATV Type Track Rollers: These track rollers are premium-quality, double-sealed cam followers designed for smooth and reliable motion in demanding applications. Built with precision needle roller bearings and a thick-walled outer ring, these rollers provide exceptional load-carrying capacity, wear resistance, and long service life even under heavy or shock loads. The integrated design ensures easy installation and maintenance-free operation, making them ideal for use in automation equipment, conveyors, cam drives, and linear motion systems.
Benefits: High load capacity, durable and reliable, easy installation
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 30mm
Technical
Technical

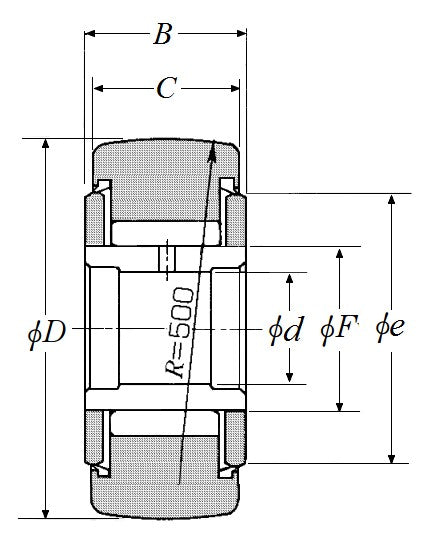

| d - Inside diameter | 40mm |
|---|---|
| D - Outside diameter | 80mm |
| C - Outer ring width | 30mm |
| F - Under roller diameter | 50mm |
| B - Bearing width | 32mm |
| e - Inlet diameter | 66mm |
| R - Track roller radius | 500mm |
| Bearing with/without cage | Without |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 68.5 kN |
| C0r - Static load rating | 171 kN |
| Track load capacity | 9.8 kN |
| N - Grease lubrication limit speed | 2000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
