SKU: NA6908RC3-NTN

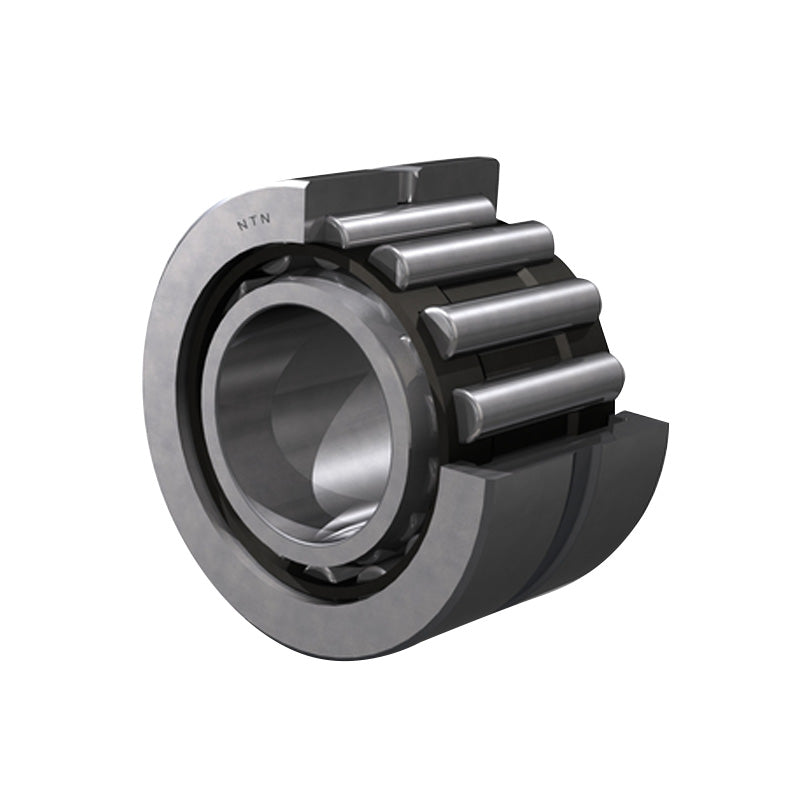

NTN NA6908RC3 Machined Needle Roller Bearing with Shaft Sleeve 40x62x40mm - Allow 2-3 Days

NTN NA6908RC3 Machined Needle Roller Bearing with Shaft Sleeve 40x62x40mm - Allow 2-3 Days

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 40mm
D - Outside diameter 62mm
C - Width of bearing, drawn cup or outer ring 40mm
F - Under roller diameter 48mm
rs - Minimum fillet radius 0.6mm
s - Max axial offset 0.5mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Lubrication hole on innr ring? No
Radial clearance class C3
Precision class P0
Cr - Dynamic load rating 67 kN
C0r - Static load rating 116 kN
N - Grease lubrication limit speed 5500 tr/min
N - Oil lubrication limit speed 8500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 44mm
Da max - Outer ring maximum shoulder diameter 58mm
ras max - Maximum shaft & housing fillet radius 0.6mm
