SKU: NA4924C3-NTN

NTN NA4924C3 Machined Needle Roller Bearing with Shaft Sleeve 120x165x45mm - Allow 2-3 Days

NTN NA4924C3 Machined Needle Roller Bearing with Shaft Sleeve 120x165x45mm - Allow 2-3 Days

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

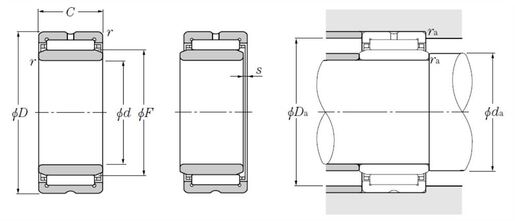

d - Inside diameter 120mm
D - Outside diameter 165mm
C - Width of bearing, drawn cup or outer ring 45mm
F - Under roller diameter 135mm
rs - Minimum fillet radius 1.1mm
s - Max axial offset 2mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Lubrication hole on innr ring? No
Radial clearance class C3
Precision class P0
Cr - Dynamic load rating 180 kN
C0r - Static load rating 380 kN
N - Grease lubrication limit speed 2000 tr/min
N - Oil lubrication limit speed 3000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 126.5mm
Da max - Outer ring maximum shoulder diameter 158.5mm
ras max - Maximum shaft & housing fillet radius 1mm
