SKU: NA4905RS-MB

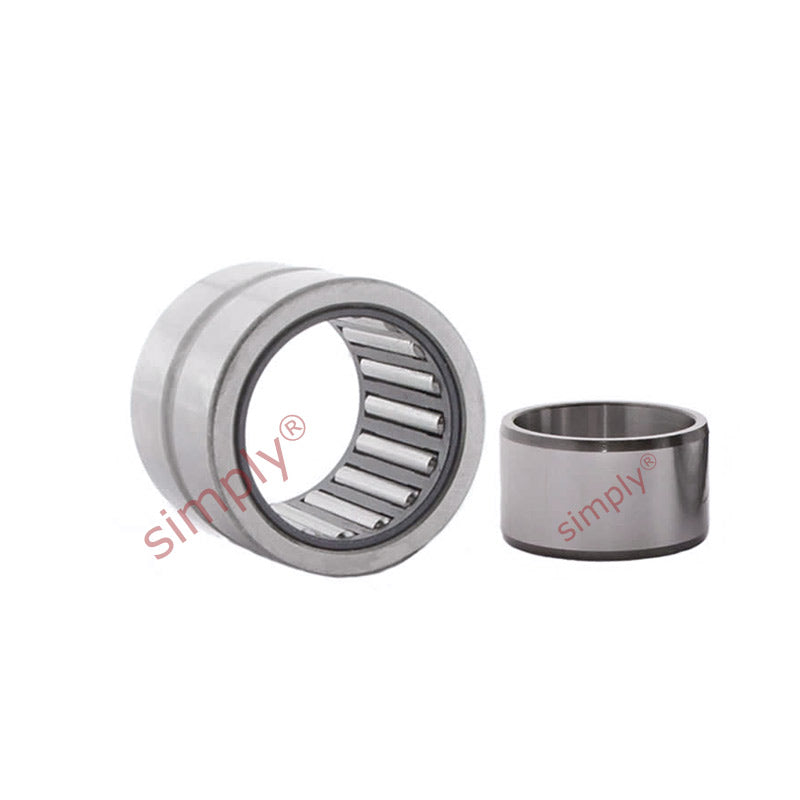

Major Brand NA4905RS Needle Roller Bearing With Shaft Sleeve and One Rubber Seal 25x42x18mm
- Regular price
- €39,95 ex VAT
- Sale price
- €39,95
- Regular price
-
Not in stock
Quantity Price Breaks
10
€35,56
19
€33,56
29
€33,16
39
€32,76
49
€32,36
74
€31,96
99
€29,96
199
€29,56
249
€29,16
499
€28,76
999
€27,97
SKU:
NA4905RS-MB
Major Brand NA4905RS Needle Roller Bearing With Shaft Sleeve and One Rubber Seal 25x42x18mm
- Regular price
- €39,95 ex VAT
- Sale price
- €39,95
- Regular price
-
Description
|
Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes. Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring. |
Technical
| d | = | 25mm |
| D | = | 42mm |
| B | = | 18mm |
| C | = | 17mm |
| Dynamic load | = | 21600 N |
| Static load | = | 27500 N |
| Fatigue load limit Pu | = | 3350 N |
| Speed in grease | = | 6300 rpm |
| Speed in oil | = | 6300 rpm |
| F | = | 30mm |
| r1r2 | = | 0.3mm |
| S (axial disp) | = | 0.5mm |
| da min | = | 27mm |
| Da max | = | 40mm |
| ra max | = | 0.3mm |
