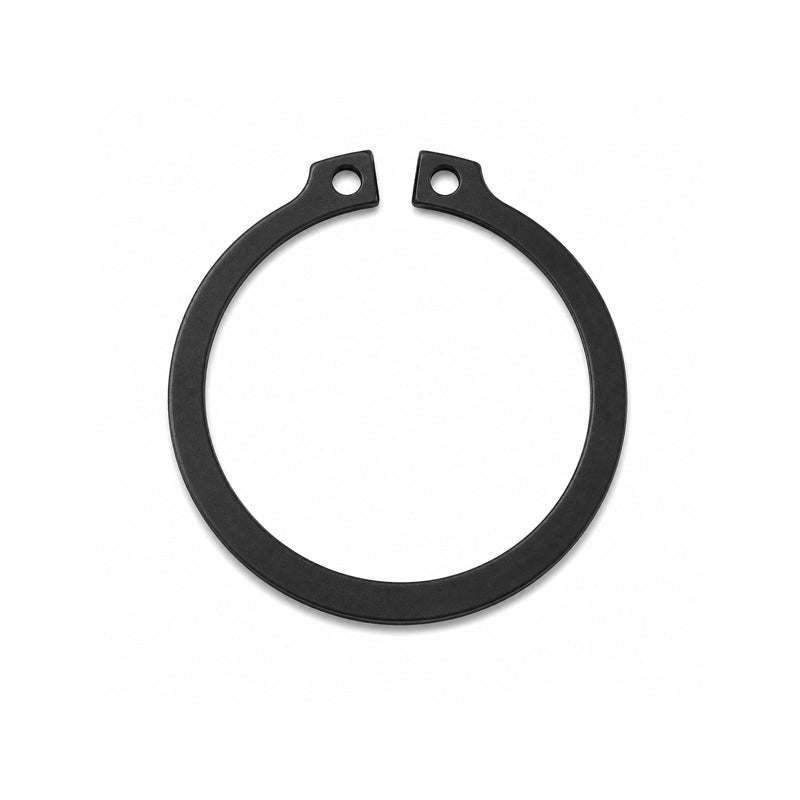

External Circlip for 6.25 inch Shaft Diameter Un-Sprung Diameter 5.866 inch
External Circlip for 6.25 inch Shaft Diameter Un-Sprung Diameter 5.866 inch
Equivalent to: N1400-625
Out of stock
Description
Description
|
Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable. |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 149mm = 5.866 inch
- Material:
- Sprung Carbon Steel
- Shaft Size:
- 158.75mm = 6.25 (6-1/4) inch
- Thickness:
- 3.97mm = 0.156 (5/32) inch
- Groove Diameter:
- 152.02mm = 5.985 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 6.250 inch |
| Ring Thickness (t) | 0.156 inch |
| Thickness tolerance (t) | 0.005 inch |
| Unstressed diameter (D) | 5.866 inch |
| Unstressed diameter tolerance (D) | +0.020 / -0.050 inch |
| Lug (L) | 0.508 inch |
| Beam (b) | 0.396 inch |
| h | 0.151 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 5.985 inch |
| Groove tolerance (G) | 0.008 inch |
| Minimum Groove Width (W) | 0.174 inch |
| Groove Width Tolerance (W) | +0.008 / -0.000 inch |
| Groove depth (d) | 0.132 inch |
