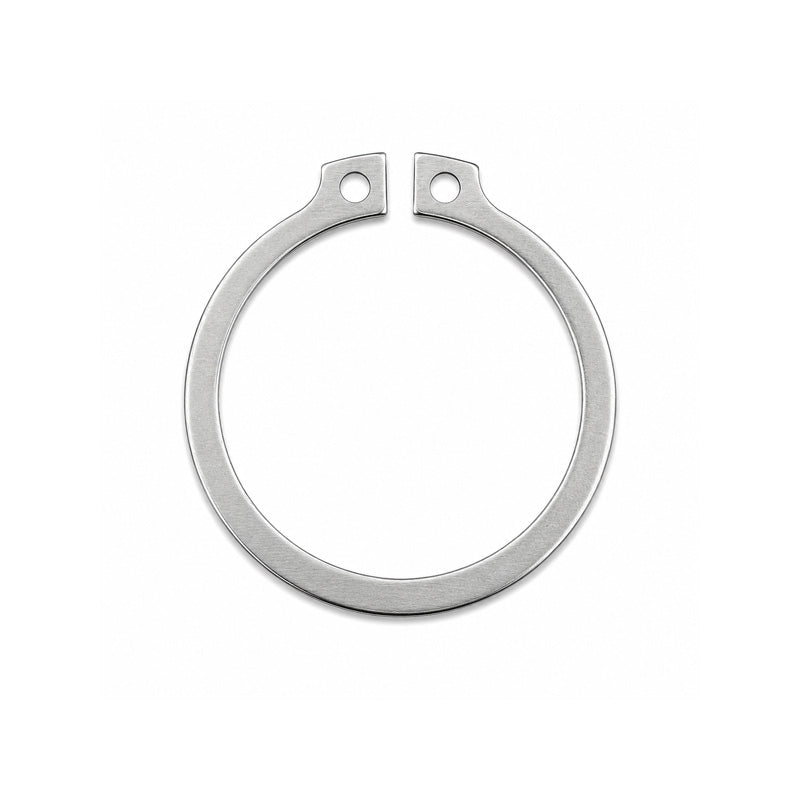

Stainless Steel External Circlip for 3.93 inch Shaft Diameter Un-Sprung Diameter 3.642 inch
Stainless Steel External Circlip for 3.93 inch Shaft Diameter Un-Sprung Diameter 3.642 inch
Equivalent to: N1400-393SS
Out of stock
Description
Description
|
Stainless Steel Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Stainless Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable, corrosion resistant. |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 92.51mm = 3.642 inch
- Material:
- Stainless Steel
- Shaft Size:
- 100.01mm = 3.938 (3-15/16) inch
- Thickness:
- 2.78mm = 0.109 (7/64) inch
- Groove Diameter:
- 94.85mm = 3.734 (3-47/64) inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 3.938 inch |
| Ring Thickness (t) | 0.109 inch |
| Thickness tolerance (t) | 0.003 inch |
| Unstressed diameter (D) | 3.642 inch |
| Unstressed diameter tolerance (D) | +0.020 / -0.030 inch |
| Lug (L) | 0.323 inch |
| Beam (b) | 0.318 inch |
| h | 0.163 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 3.734 inch |
| Groove tolerance (G) | 0.006 inch |
| Minimum Groove Width (W) | 0.12 inch |
| Groove Width Tolerance (W) | +0.005 / -0.000 inch |
| Groove depth (d) | 0.102 inch |
