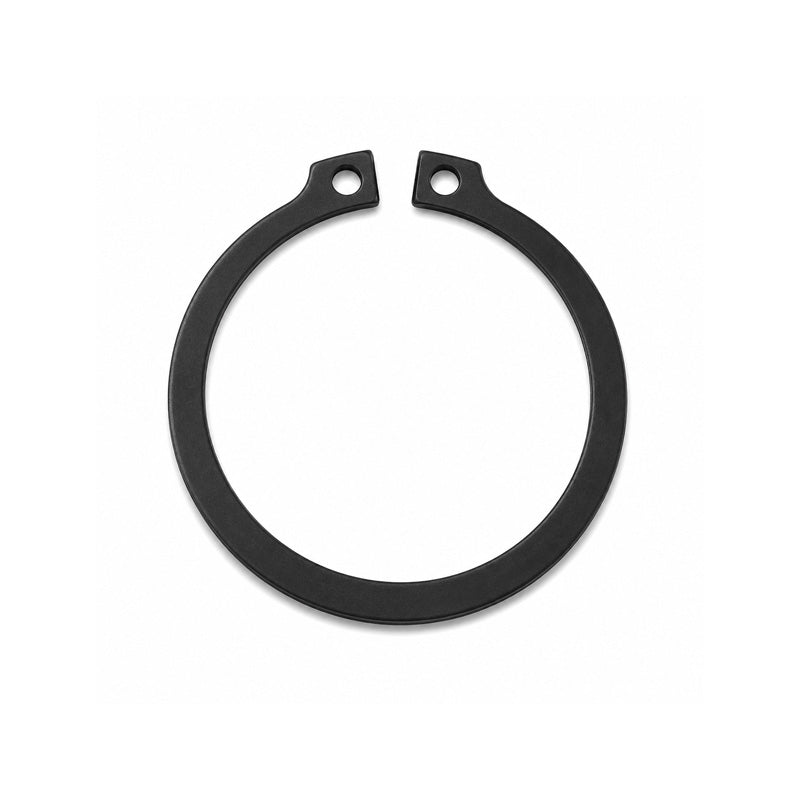

External Circlip for 1.02 inch Shaft Diameter Un-Sprung Diameter 0.946 inch
External Circlip for 1.02 inch Shaft Diameter Un-Sprung Diameter 0.946 inch
Equivalent to: N1400-102
Out of stock
Description
Description
|
Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable. |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 24.03mm = 0.946 inch
- Material:
- Sprung Carbon Steel
- Shaft Size:
- 25.98mm = 1.023 inch
- Thickness:
- 1.07mm = 0.042 inch
- Groove Diameter:
- 24.41mm = 0.961 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 1.023 inch |
| Ring Thickness (t) | 0.042 inch |
| Thickness tolerance (t) | 0.002 inch |
| Unstressed diameter (D) | 0.946 inch |
| Unstressed diameter tolerance (D) | +0.005 / -0.010 inch |
| Lug (L) | 0.172 inch |
| Beam (b) | 0.118 inch |
| h | 0.076 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 0.961 inch |
| Groove tolerance (G) | 0.003 inch |
| Minimum Groove Width (W) | 0.046 inch |
| Groove Width Tolerance (W) | +0.003 / -0.000 inch |
| Groove depth (d) | 0.031 inch |
