SKU: N1400-039SS

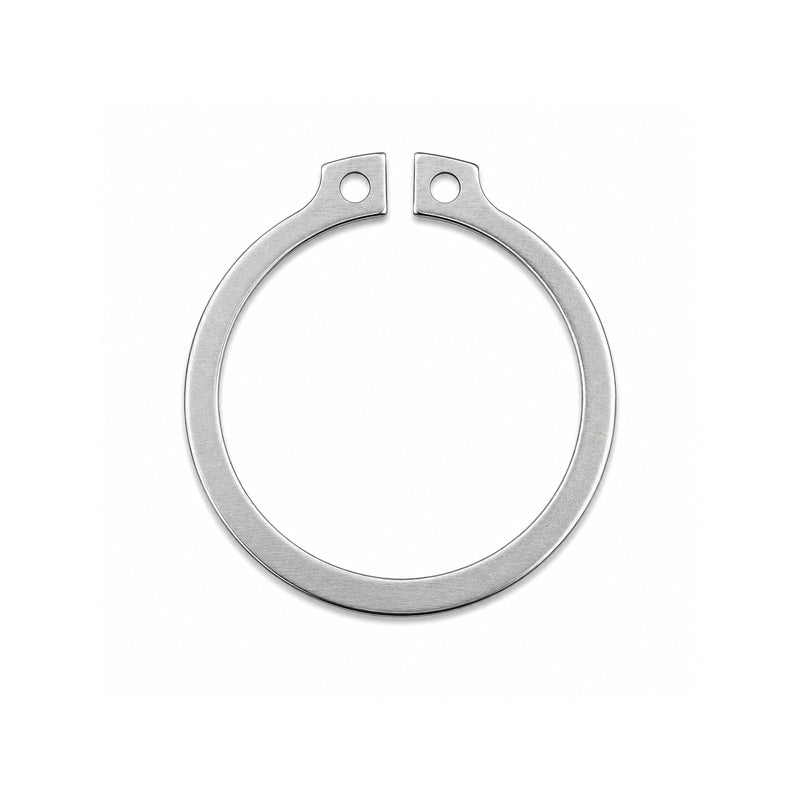

Stainless Steel External Circlip for 0.39 inch Shaft Diameter Un-Sprung Diameter 0.354 inch
Stainless Steel External Circlip for 0.39 inch Shaft Diameter Un-Sprung Diameter 0.354 inch
Equivalent to: N1400-039SS
Out of stock
Description
Description
|
Stainless Steel Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Stainless Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable, corrosion resistant. |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 8.99mm = 0.354 inch
- Material:
- Stainless Steel
- Shaft Size:
- 10.01mm = 0.394 inch
- Thickness:
- 0.64mm = 0.025 inch
- Groove Diameter:
- 9.37mm = 0.369 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 0.394 inch |
| Ring Thickness (t) | 0.025 inch |
| Thickness tolerance (t) | 0.002 inch |
| Unstressed diameter (D) | 0.354 inch |
| Unstressed diameter tolerance (D) | +0.002 / -0.005 inch |
| Lug (L) | 0.09 inch |
| Beam (b) | 0.052 inch |
| h | 0.031 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 0.369 inch |
| Groove tolerance (G) | 0.002 inch |
| Minimum Groove Width (W) | 0.029 inch |
| Groove Width Tolerance (W) | +0.003 / -0.000 inch |
| Groove depth (d) | 0.013 inch |
