SKU: N1300-206SS

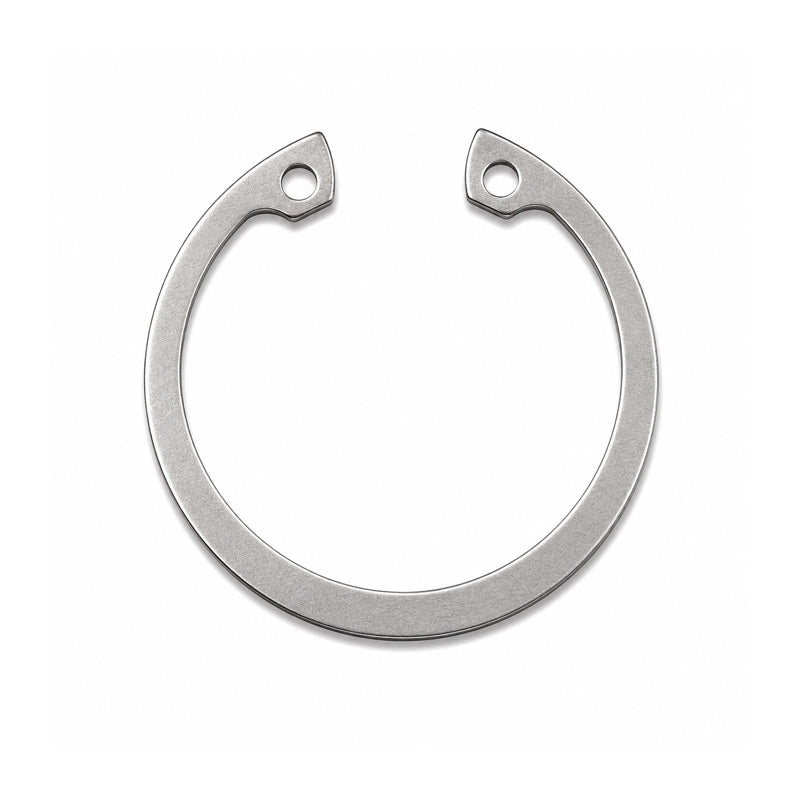

Stainless Steel Internal Circlip for 2.06 inch Bore Diameter Un-Sprung Diameter 2.280 inch
Stainless Steel Internal Circlip for 2.06 inch Bore Diameter Un-Sprung Diameter 2.280 inch
Equivalent to: N1300-206SS
Out of stock
Description
Description
|
Stainless Steel Imperial Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 52.39mm = 2.062 (2-1/16) inch
- Outside Diameter:
- 57.91mm = 2.28 inch
- Material:
- Stainless Steel
- Thickness:
- 1.98mm = 0.078 (5/64) inch
- Groove Diameter:
- 55.52mm = 2.186 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Bore Size (B) | 2.062 inch |
| Ring Thickness (t) | 0.078 inch |
| Thickness tolerance (t) | 0.078 inch |
| Unstressed diameter (D) | 2.280 inch |
| Unstressed diameter tolerance (D) | +0.040 / -0.030 inch |
| Lug (L) | 0.225 inch |
| Beam (b) | 0.186 inch |
| h | 0.091 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 2.186 inch |
| Groove tolerance (G) | 0.006 inch |
| Minimum Groove Width (W) | 0.086 inch |
| Groove Width Tolerance (W) | +0.005 / -0.000 inch |
| Groove depth (d) | 0.062 inch |
