SKU: N1300-165SS

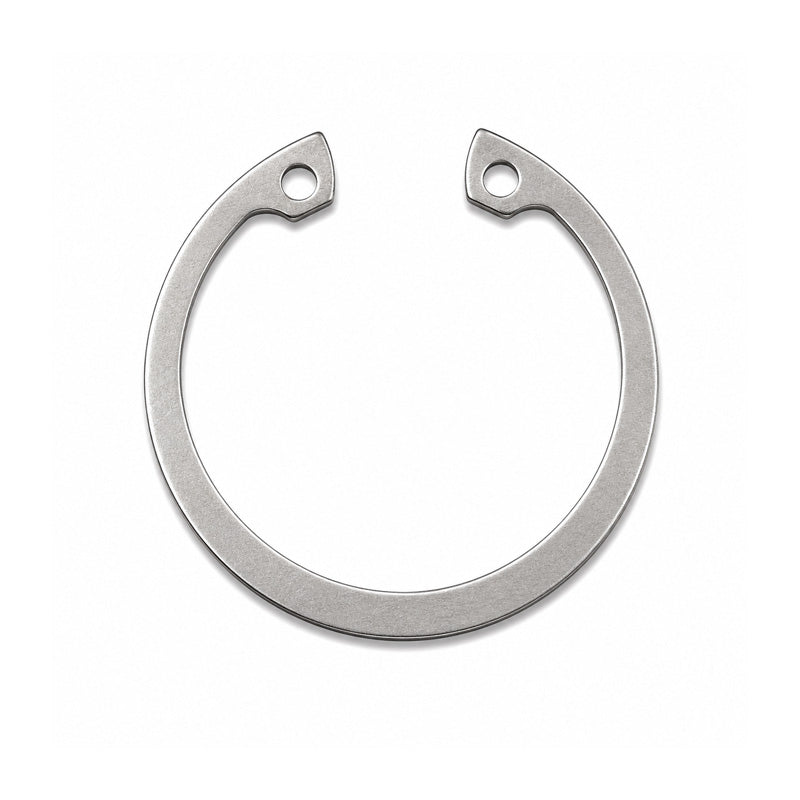

Stainless Steel Internal Circlip for 1.65 inch Bore Diameter Un-Sprung Diameter 1.835 inch
Stainless Steel Internal Circlip for 1.65 inch Bore Diameter Un-Sprung Diameter 1.835 inch
Equivalent to: N1300-165SS
Out of stock
Description
Description
|
Stainless Steel Imperial Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 41.99mm = 1.653 inch
- Outside Diameter:
- 46.61mm = 1.835 inch
- Material:
- Stainless Steel
- Thickness:
- 1.57mm = 0.062 inch
- Groove Diameter:
- 44.58mm = 1.755 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Bore Size (B) | 1.653 inch |
| Ring Thickness (t) | 0.062 inch |
| Thickness tolerance (t) | 0.062 inch |
| Unstressed diameter (D) | 1.835 inch |
| Unstressed diameter tolerance (D) | +0.035 / -0.025 inch |
| Lug (L) | 0.205 inch |
| Beam (b) | 0.167 inch |
| h | 0.076 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 1.755 inch |
| Groove tolerance (G) | 0.005 inch |
| Minimum Groove Width (W) | 0.068 inch |
| Groove Width Tolerance (W) | +0.004 / -0.000 inch |
| Groove depth (d) | 0.051 inch |
