SKU: N1300-145SS

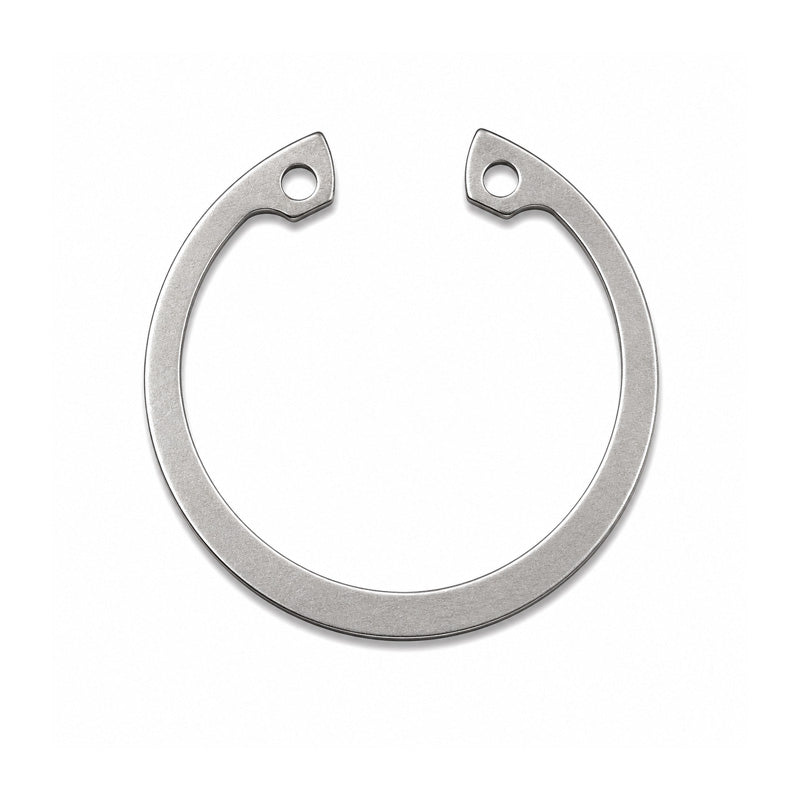

Stainless Steel Internal Circlip for 1.45 inch Bore Diameter Un-Sprung Diameter 1.616 inch
Stainless Steel Internal Circlip for 1.45 inch Bore Diameter Un-Sprung Diameter 1.616 inch
Equivalent to: N1300-145SS
Out of stock
Description
Description
|
Stainless Steel Imperial Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 36.98mm = 1.456 inch
- Outside Diameter:
- 41.05mm = 1.616 inch
- Material:
- Stainless Steel
- Thickness:
- 1.27mm = 0.05 inch
- Groove Diameter:
- 39.32mm = 1.548 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Bore Size (B) | 1.456 inch |
| Ring Thickness (t) | 0.05 inch |
| Thickness tolerance (t) | 0.05 inch |
| Unstressed diameter (D) | 1.616 inch |
| Unstressed diameter tolerance (D) | +0.025 / -0.020 inch |
| Lug (L) | 0.185 inch |
| Beam (b) | 0.133 inch |
| h | 0.076 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 1.548 inch |
| Groove tolerance (G) | 0.004 inch |
| Minimum Groove Width (W) | 0.056 inch |
| Groove Width Tolerance (W) | +0.004 / -0.000 inch |
| Groove depth (d) | 0.046 inch |
