SKU: N1300-045SS

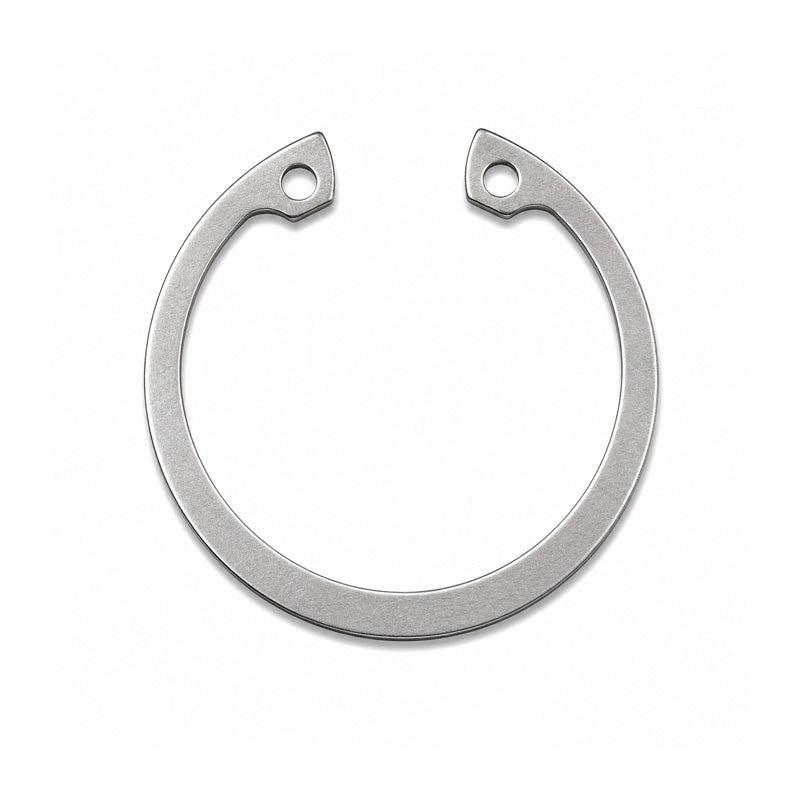

Stainless Steel Internal Circlip for 0.45 inch Bore Diameter Un-Sprung Diameter 0.498 inch
Stainless Steel Internal Circlip for 0.45 inch Bore Diameter Un-Sprung Diameter 0.498 inch
Equivalent to: N1300-045SS
Out of stock
Description
Description
|
Stainless Steel Imperial Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 11.51mm = 0.453 (29/64) inch
- Outside Diameter:
- 12.65mm = 0.498 inch
- Material:
- Stainless Steel
- Thickness:
- 0.64mm = 0.025 inch
- Groove Diameter:
- 12.12mm = 0.477 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Bore Size (B) | 0.453 inch |
| Ring Thickness (t) | 0.025 inch |
| Thickness tolerance (t) | 0.025 inch |
| Unstressed diameter (D) | 0.498 inch |
| Unstressed diameter tolerance (D) | +0.010 / -0.005 inch |
| Lug (L) | 0.101 inch |
| Beam (b) | 0.050 inch |
| h | 0.045 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 0.477 inch |
| Groove tolerance (G) | 0.002 inch |
| Minimum Groove Width (W) | 0.029 inch |
| Groove Width Tolerance (W) | +0.003 / -0.000 inch |
| Groove depth (d) | 0.012 inch |
