SKU: MUCNFL206-18-SNR

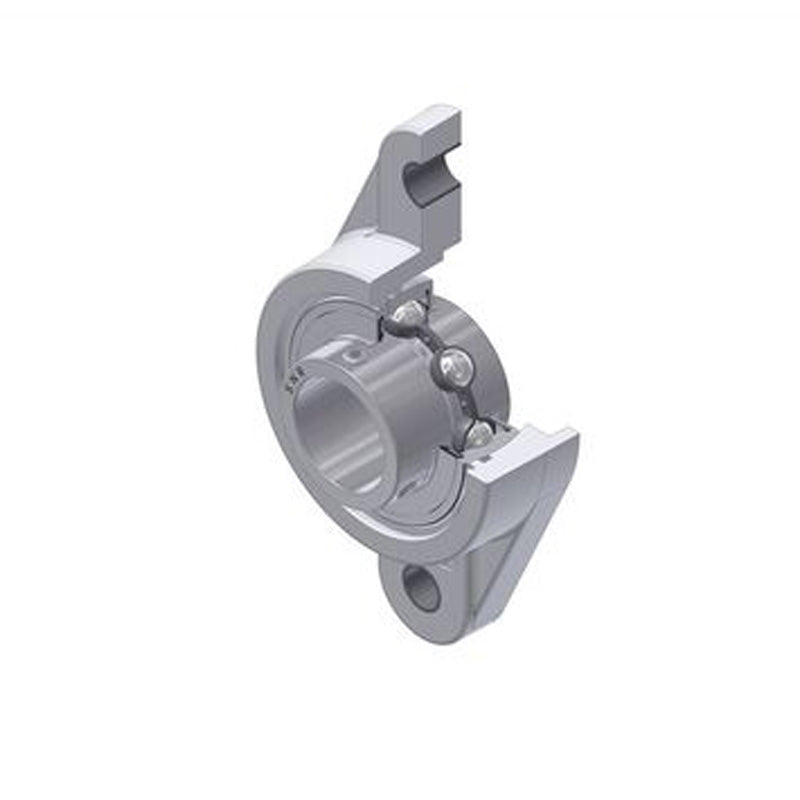

SNR MUCNFL206-18 Imperial Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 1-1/8 inch Bore Insert - Allow 2-3 Days

SNR MUCNFL206-18 Imperial Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 1-1/8 inch Bore Insert - Allow 2-3 Days

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

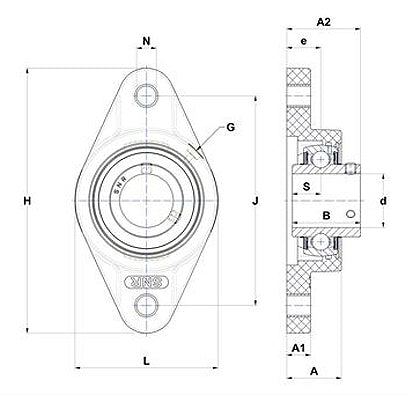

Bore 1-1/8 inch
A - Housing height 30.5mm
A1 - Housing foot height / flange height 13.3mm
A2 - Total height from mounting surface 41.2mm
B - Width of Inner Ring 38.1mm
d - Shaft diameter 28.575mm
e - Distance mounting surface to bearing centre 19mm
G - Grease fitting 1/4-28 inch
H - Housing length, width or diameter 148mm
J - Mounting holes distance 117mm
L - Housing width / diameter 80mm
N - Mounting hole dimension 11mm
S - Distance front side/bearing centre 15.9mm
C - Dynamic load rating 16.7 kN
C0 - Static load rating 9 kN
Operating temperature min. -20 Deg C
Operating temperature max. 100 Deg C
Mass 0.448kg
Recommended tightening torque for set screw 3.9 Nm
