SKU: MST2.3/16-RHP

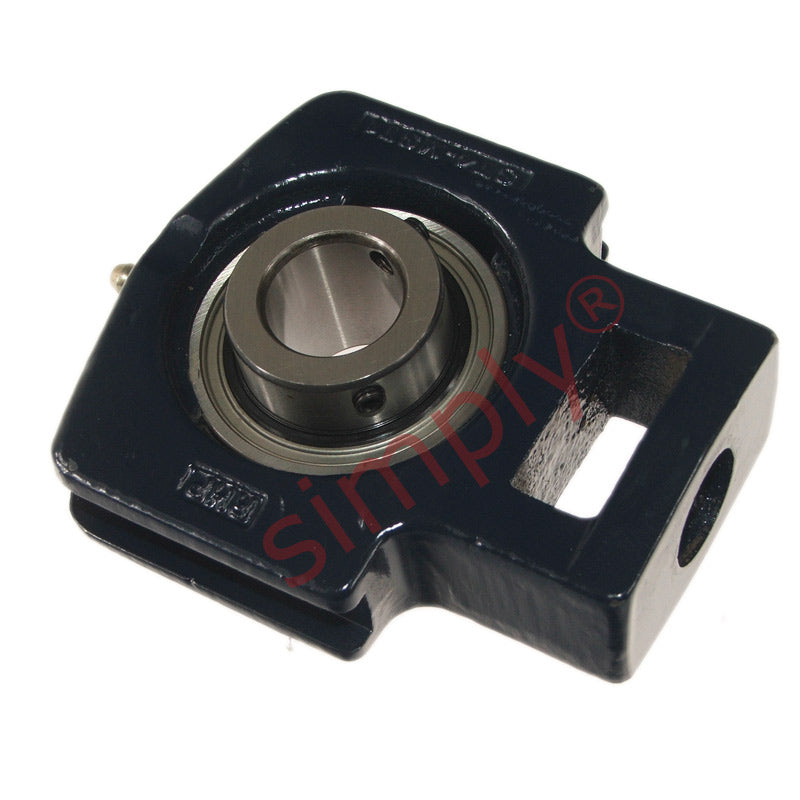

RHP MST2-3/16 Cast Iron Take Up Unit and 2-3/16 inch Bore Insert

RHP MST2-3/16 Cast Iron Take Up Unit and 2-3/16 inch Bore Insert
Regular price €233,95 ex VAT
Regular price Sale price €233,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €177,54
20+ €167,56
30+ €165,57
40+ €163,57
50+ €161,58
75+ €159,58
100+ €149,61
200+ €147,62
250+ €145,62
500+ €143,63
1000+ €139,64
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2-3/16 inch
L 7.559 inch
L1 4.685 inch
L2 0.748 inch
L3 1.26 inch
L4 3.839 inch
L5 2.756 inch
H 5.748 inch
H1 3.976 inch
H2 2.52 inch
H3 5.118 inch
N 1.378 inch
A 2.5 inch
A1 1.831 inch
A2 1.063 inch
B 2.562 inch
B5 - inch
s 1.002 inch
d1 2.966 inch
d4 - inch
Dynamic load 48000 N
Static load 33000 N
Rec max speed 2800 rpm
Weight 5.4 kg
Insert <a href="advanced_search_result.php?keywords=1060-2-3/16G+insonly">1060-2-3/16G Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
