SKU: MST100-RHP

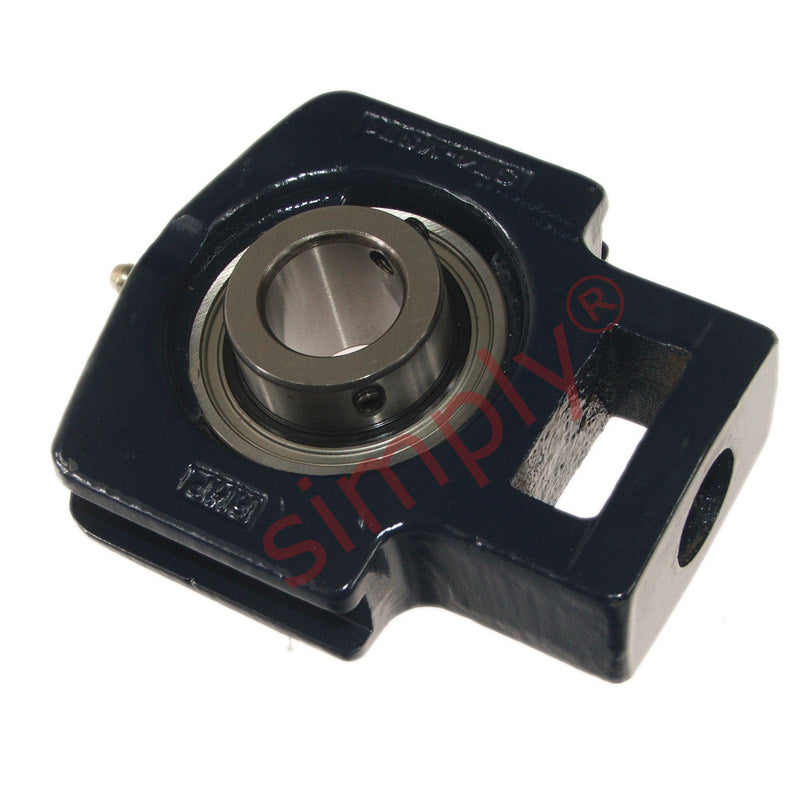

RHP MST100 Cast Iron Take Up Unit and 100mm Bore Insert
RHP MST100 Cast Iron Take Up Unit and 100mm Bore Insert
Regular price
€1.149,95
ex VAT
Regular price
Sale price
€1.149,95
ex VAT
In stock
Price Break
10+
€873,59
20+
€824,52
30+
€814,70
40+
€804,88
50+
€795,07
75+
€785,25
100+
€736,17
200+
€726,36
250+
€716,54
500+
€706,73
1000+
€687,10
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 100mm
- Style:
- MST

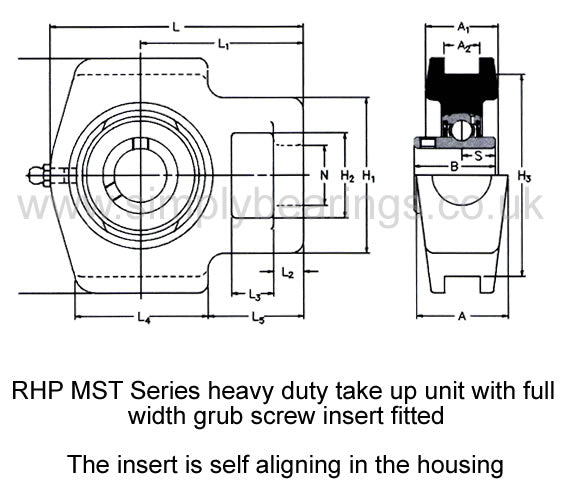

Technical
Technical
| Bore | 100mm |
|---|---|
| L | 317.5mm |
| L1 | 190.5mm |
| L2 | 32mm |
| L3 | 38mm |
| L4 | 175mm |
| L5 | 103mm |
| H | 260.5mm |
| H1 | 152.5mm |
| H2 | 85.5mm |
| H3 | 235mm |
| N | 54.5mm |
| A | 98.5mm |
| A1 | 82.5mm |
| A2 | 55.55mm |
| B | 117.48mm |
| B5 | -mm |
| s | 49.27mm |
| d1 | 130.43mm |
| d4 | -mm |
| Dynamic load | 157000 N |
| Static load | 122000 N |
| Rec max speed | 1600 rpm |
| Weight | 22.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=3095-100G+insonly">3095-100G Click Here</a> |
| Casting group | 13 |
| Grease nipple thread | 1/4 UNF, 1/4mm x 28 TPI |
