SKU: MSFT1055-1.15/16K-RHP

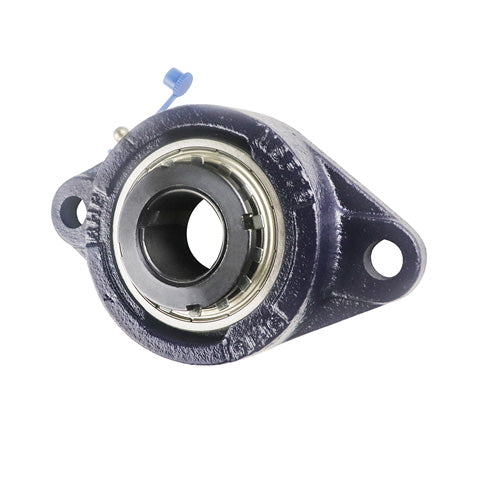

RHP MSFT1055-1-15/16K Two Bolt Oval Cast Iron Flange Housing 1-15/16 inch Bore Insert
Out of stock
Share this product
Description
|
RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed heavy duty bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate the taper sleeve which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- MSFT
- Bolt Hole Centres:
- 183.998mm = 7.244 inch
Technical
| Bore | 1-15/16 inch |
|---|---|
| L | 5 inch |
| H | 8.5 inch |
| J | 7.244 inch |
| G | 0.625 inch |
| A | 1.72 inch |
| A4 | 0.689 inch |
| A5 | 2.185 inch |
| B5 | 1.772 inch |
| s | - inch |
| d4 | 2.953 inch |
| Dynamic load | 43500 N |
| Static load | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 3.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055K+insonly">1055K Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
