SKU: MP1.7/8-RHP

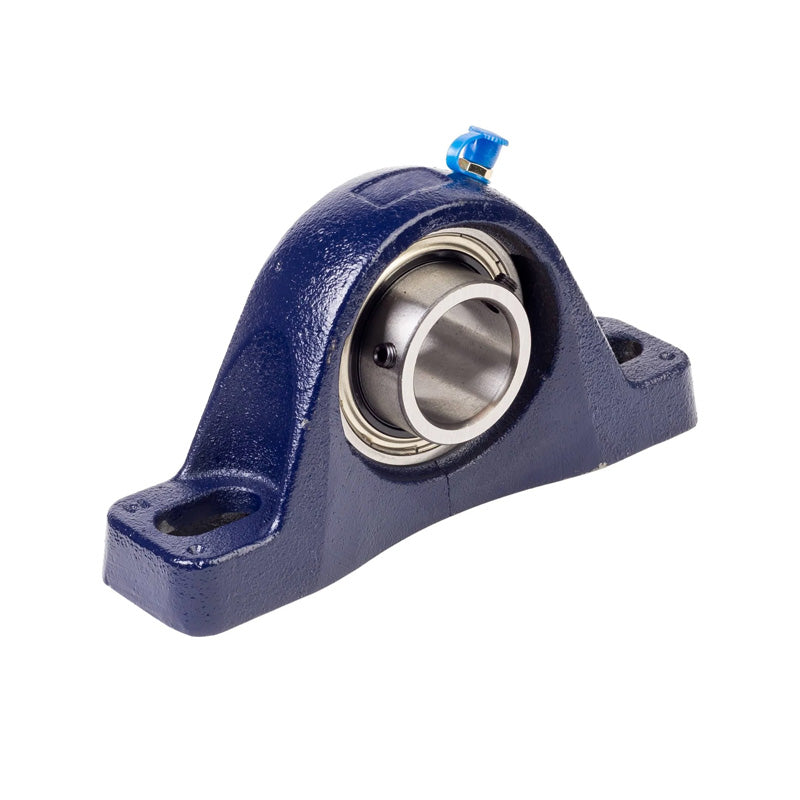

RHP MP1-7/8 Two Bolt Cast Iron Pillow Block and 1-7/8 Bore Grub Screw Insert

RHP MP1-7/8 Two Bolt Cast Iron Pillow Block and 1-7/8 Bore Grub Screw Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-7/8 inch
L 8.641 inch
H 2.5 inch
H1 0.976 inch
H2 5.098 inch
J max 7.028 inch
J min 6.398 inch
G 0.625 inch
A 2.362 inch
A1 1.555 inch
B 2.187 inch
s 0.877 inch
d1 2.709 inch
Dynamic load Cr 43500 N
Static load Cor 29200 N
Rec max speed 3100 rpm
Weight 4 kg
Insert <a href="advanced_search_result.php?keywords=1055-1-7/8G+insonly">1055-1-7/8G Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
