SKU: MFC1.3/4-RHP

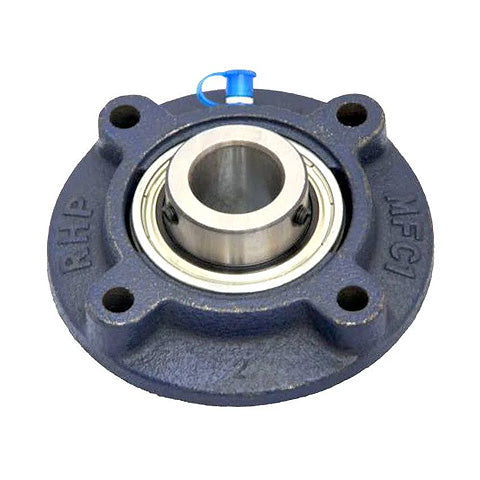

RHP MFC1-3/4 Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/4 inch Insert
RHP MFC1-3/4 Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/4 inch Insert
Regular price
€140,95
ex VAT
Regular price
Sale price
€140,95
ex VAT
In stock
Price Break
10+
€106,91
20+
€100,91
30+
€99,71
40+
€98,50
50+
€97,30
75+
€96,10
100+
€90,10
200+
€88,89
250+
€87,69
500+
€86,49
1000+
€84,09
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- MFC
- Pitch Circle Diameter:
- 130.18mm = 5.125 (5-1/8) inch

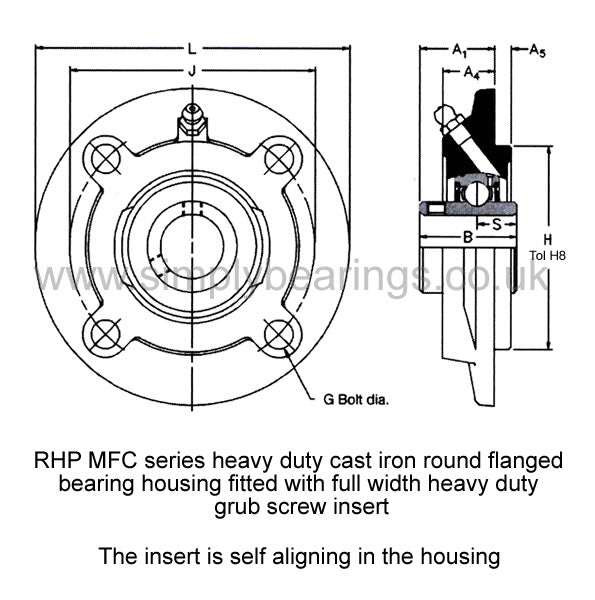

Technical
Technical
| Bore | 1-3/4 inch |
|---|---|
| L | 6.126 inch |
| H | 4.25 inch |
| J | 5.125 inch |
| G | 0.4375 inch |
| A1 | 1.562 inch |
| A4 | 0.748 inch |
| A5 | 0.252 inch |
| B | 2.031 inch |
| s | 0.752 inch |
| d1 | 2.449 inch |
| Dynamic load | 35000 N |
| Static load | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-1-3/4G+insonly">1050-1-3/4G Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
