SKU: M249748D/M249710/M249710EA-TIM

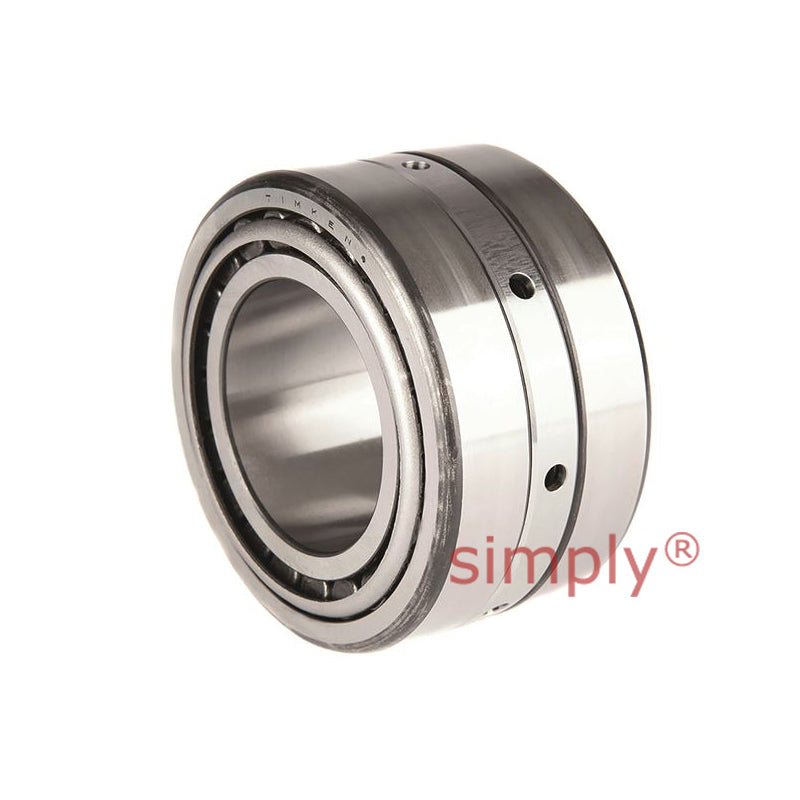

Timken M249748D/M249710/M249710EA TDI Double Inner Race Taper Roller Bearing 10x14.125x5.125x5.125 inch
Timken M249748D/M249710/M249710EA TDI Double Inner Race Taper Roller Bearing 10x14.125x5.125x5.125 inch
Out of stock
Description
Description

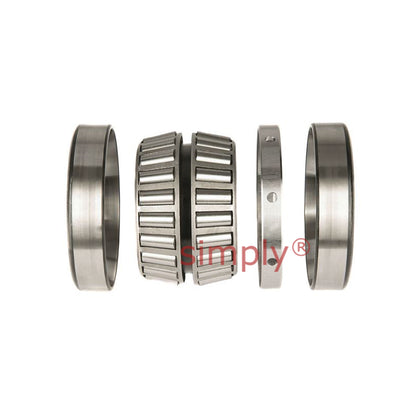

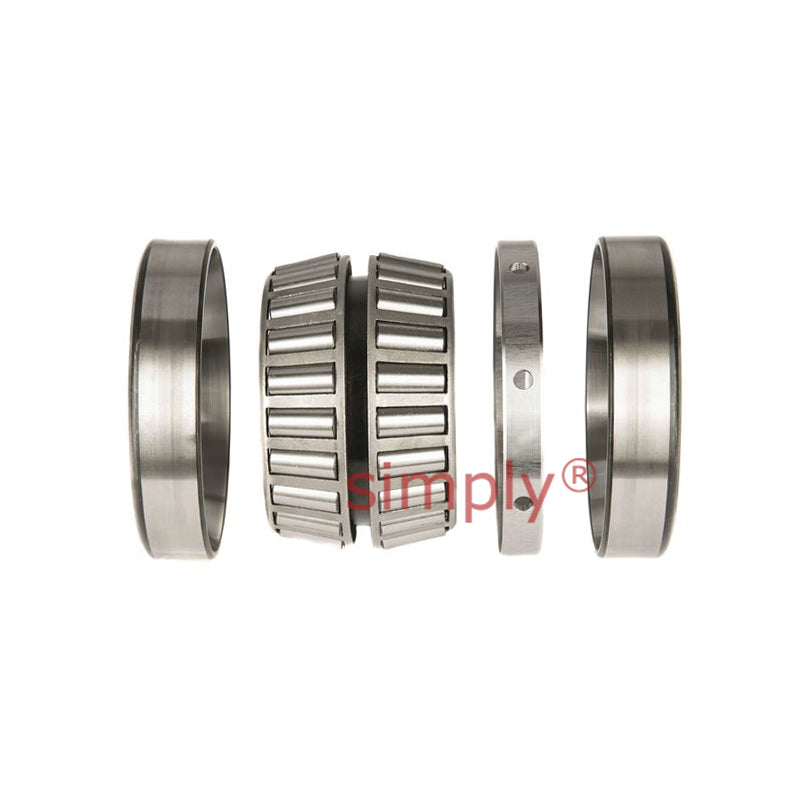

Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 254mm = 10 inch
- Outside Diameter:
- 358.78mm = 14.125 (14-1/8) inch
- Width:
- 130.18mm = 5.125 (5-1/8) inch
Technical
Technical
| d | 254mm = 10 inch |
|---|---|
| D | 358.775mm = 14.125 inch |
| T | 130.175mm = 5.125 inch |
| C | 130.175mm = 5.125 inch |
| Dynamic (1) C1 | 1560000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.03 |
| Factors (5) Y2 | 3.02 |
| Dynamic (2) C90 | 232000N |
| Dynamic (2) Ca90 | 132000N |
| Dynamic (2) C90(2) | 405000N |
| Factors (5) K | 1.76 |
| Shaft max shaft fillet radius R (3) | 3.3mm = 0.13 inch |
| Shaft backing shoulder diameter da | 272.5mm = 10.73 inch |
| Housing max shaft fillet radius r (3) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | 335mm = 13.19 inch |
| G1 | 1630 |
| G2 | 168 |
| Cg | 0.1526 |
