SKU: M-UELFC207D1-NTN

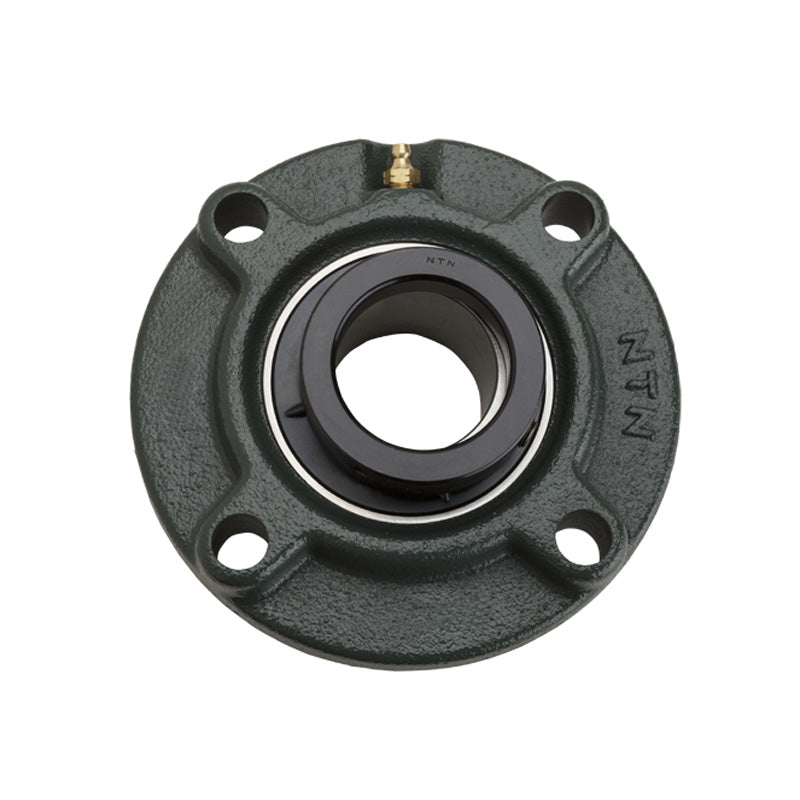

NTN M-UELFC207D1 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELFC207D1 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
€48,95
ex VAT
Regular price
Sale price
€48,95
ex VAT
In stock
Price Break
3+
€37,11
4+
€35,03
9+
€34,61
19+
€34,19
49+
€33,78
99+
€33,36
499+
€31,28
999+
€30,86
1999+
€30,44
2999+
€30,02
4999+
€29,19
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UELFC200 Series 4 Bolt Cast Iron Round Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UELFC
- Pitch Circle Diameter:
- 77.8mm

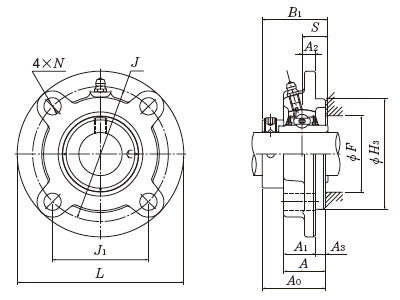

Technical
Technical
| Shaft diameter | 35mm |
|---|---|
| L | 135mm |
| J | 110mm |
| (J<sub>1</sub> | 77.8mm |
| A<sub>2</sub> | 11mm |
| N | 14mm |
| A<sub>3</sub> | 8mm |
| A<sub>1</sub> | 26mm |
| A | 34mm |
| H<sub>3</sub> | 90mm |
| A<sub>0</sub> | 51.3mm |
| B<sub>1</sub> | 51.1mm |
| S | 18.8mm |
| F min. | 53mm |
| Fixing bolt | M12 |
| Mass | 1.8 kg |
