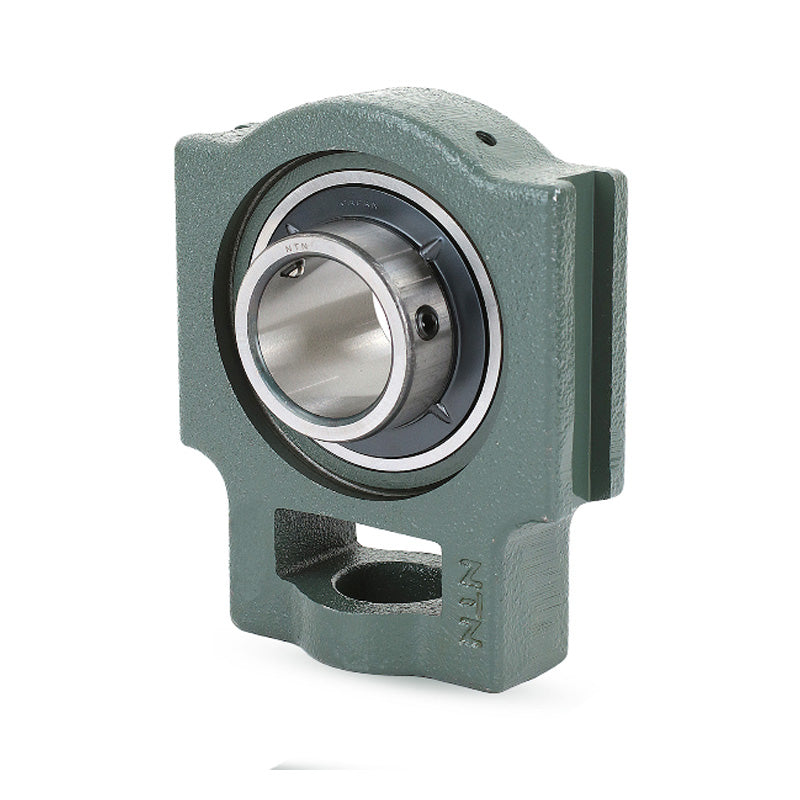

• NTN M-UCT206D1 Metric Cast Iron Take Up Unit with 30mm Bore Bearing Unit - Allow 2-3 Days
1 1

SKU: M-UCT206D1-NTN

NTN M-UCT206D1 Metric Cast Iron Take Up Unit with 30mm Bore Bearing Unit - Allow 2-3 Days

NTN M-UCT206D1 Metric Cast Iron Take Up Unit with 30mm Bore Bearing Unit - Allow 2-3 Days
€36,95 ex VAT
€36,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €27,98
4+ €26,41
9+ €26,10
19+ €25,78
49+ €25,47
99+ €25,15
499+ €23,58
999+ €23,27
1999+ €22,95
2999+ €22,64
4999+ €22,01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCT200_DESC
Brand / Quality:
NTN - High Quality
Inside Diameter:
30mm
Style:
UCT
Technical
--- Dimensions
Shaft diameter 30mm
N<sub>1</sub> 16mm
L<sub>2</sub> 12mm
H<sub>2</sub> 56mm
N<sub>2</sub> 37mm
N 22mm
L<sub>3</sub> 57mm
A<sub>1</sub> 12mm
H<sub>1</sub> 89mm
H 102mm
L 113mm
A<sub>2</sub> 28mm
A 37mm
r 43mm
L<sub>1</sub> 70mm
B 38.1mm
S 15.9mm
--- Load rating
Dynamic load C<sub>r</sub> 21.6 kN
Static load C<sub>0r</sub> 11.3 kN
Fatigue load limit C<sub>u</sub> 0.795 kN
--- Unit information
Mass 1.3 kg
