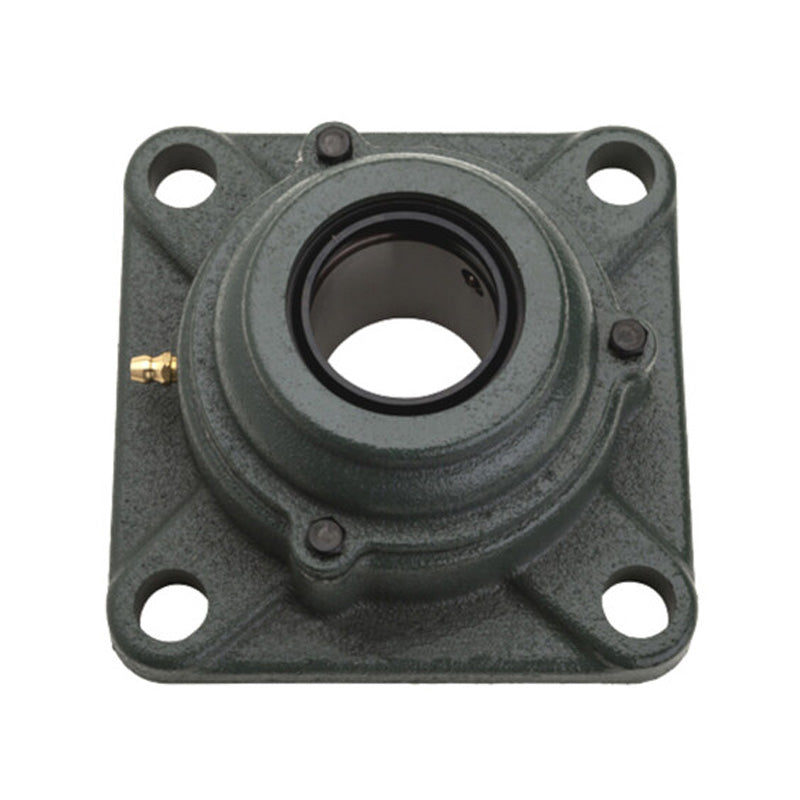

NTN M-UCFC208D1 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert - Allow 2-3 Days
NTN M-UCFC208D1 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert - Allow 2-3 Days
Regular price
€46,95
ex VAT
Regular price
Sale price
€46,95
ex VAT
In stock
Price Break
3+
€35,34
4+
€33,36
9+
€32,96
19+
€32,56
49+
€32,17
99+
€31,77
499+
€29,78
999+
€29,39
1999+
€28,99
2999+
€28,59
4999+
€27,80
Quantity
Couldn't load pickup availability
Description
Description
|

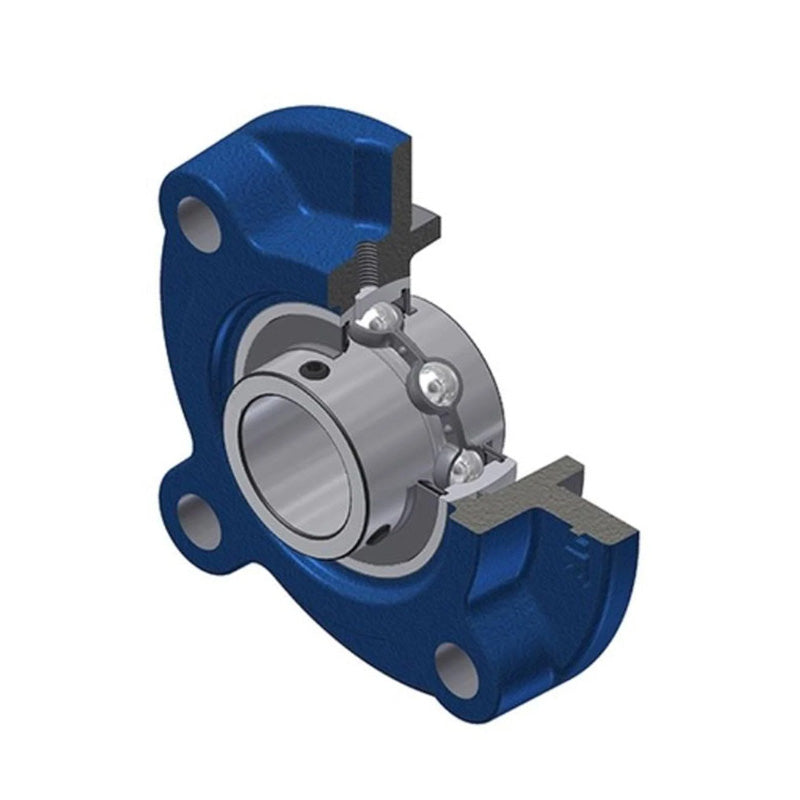

UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 84.9mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| L | 145mm |
| J | 120mm |
| (J<sub>1</sub>) | 84.9mm |
| A<sub>2</sub> | 11mm |
| N | 14mm |
| A<sub>3</sub> | 10mm |
| A<sub>1</sub> | 26mm |
| A | 36mm |
| H<sub>3</sub> | 100mm |
| A<sub>0</sub> | 51.2mm |
| B | 49.2mm |
| S | 19mm |
| Fixing bolt | M12 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 32.5 kN |
| Static load C<sub>0r</sub> | 17.8 kN |
| Fatigue load limit C<sub>u</sub> | 1.24 kN |
| --- | Unit information |
| Mass | 2 kg |
