SKU: M-S-UCT206-102D1-NTN

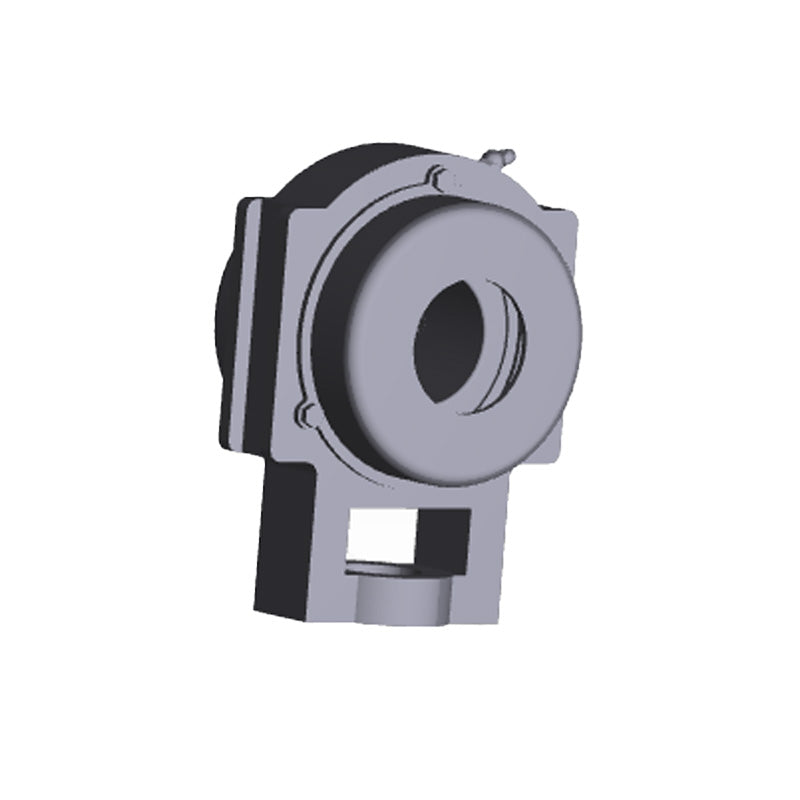

NTN M-S-UCT206-102D1 Imperial Cast Iron Take Up Unit with 1-1/8 inch Bore Bearing Unit with Steel Plate Cover - Open Version - Allow 2-3 Days
NTN M-S-UCT206-102D1 Imperial Cast Iron Take Up Unit with 1-1/8 inch Bore Bearing Unit with Steel Plate Cover - Open Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-1/8 inch |
| N<sub>1</sub> | 5/8 inch |
| L<sub>2</sub> | 15/32 inch |
| H<sub>2</sub> | 2-7/32 inch |
| N<sub>2</sub> | 1-15/32 inch |
| N | 7/8 inch |
| L<sub>3</sub> | 2-1/4 inch |
| A<sub>1</sub> | 0.472 inch |
| H<sub>1</sub> | 3-1/2 inch |
| H | 4-1/32 inch |
| L | 4-7/16 inch |
| A<sub>2</sub> | 1-3/32 inch |
| A | 1-15/32 inch |
| r | 1-11/16 inch |
| L<sub>1</sub> | 2-3/4 inch |
| B | 1.5 inch |
| S | 0.626 inch |
| A<sub>4</sub> | 2-7/16 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 21.6 kN |
| Static load C<sub>0r</sub> | 11.3 kN |
| Fatigue load limit C<sub>u</sub> | 0.795 kN |
| --- | Unit information |
| Mass | 2.9 lbs |
