SKU: M-S-UCFC210D1-NTN

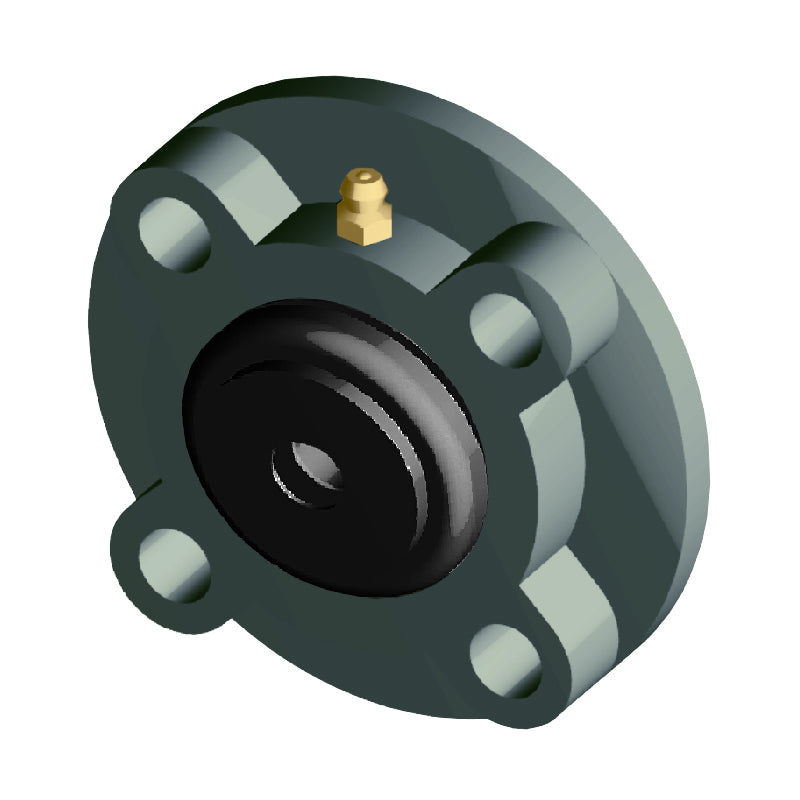

NTN M-S-UCFC210D1 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN M-S-UCFC210D1 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
€66,95 ex VAT
€66,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €50,22
4+ €47,40
9+ €46,84
19+ €46,27
49+ €45,71
99+ €45,14
499+ €42,32
999+ €41,76
1999+ €41,19
2999+ €40,63
4999+ €39,50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
50mm
Style:
UCFC
Pitch Circle Diameter:
97.6mm
Technical
--- Dimensions
Shaft diameter 50mm
L 165mm
J 138mm
(J<sub>1</sub>) 97.6mm
A<sub>2</sub> 10mm
N 16mm
A<sub>3</sub> 12mm
A<sub>1</sub> 28mm
A 40mm
H<sub>3</sub> 110mm
B 51.6mm
S 19mm
A<sub>4</sub> 65.5mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 39 kN
Static load C<sub>0r</sub> 23.2 kN
Fatigue load limit C<sub>u</sub> 1.82 kN
--- Unit information
Mass 3.1 kg
