SKU: M-CM-UCFC214D1-NTN

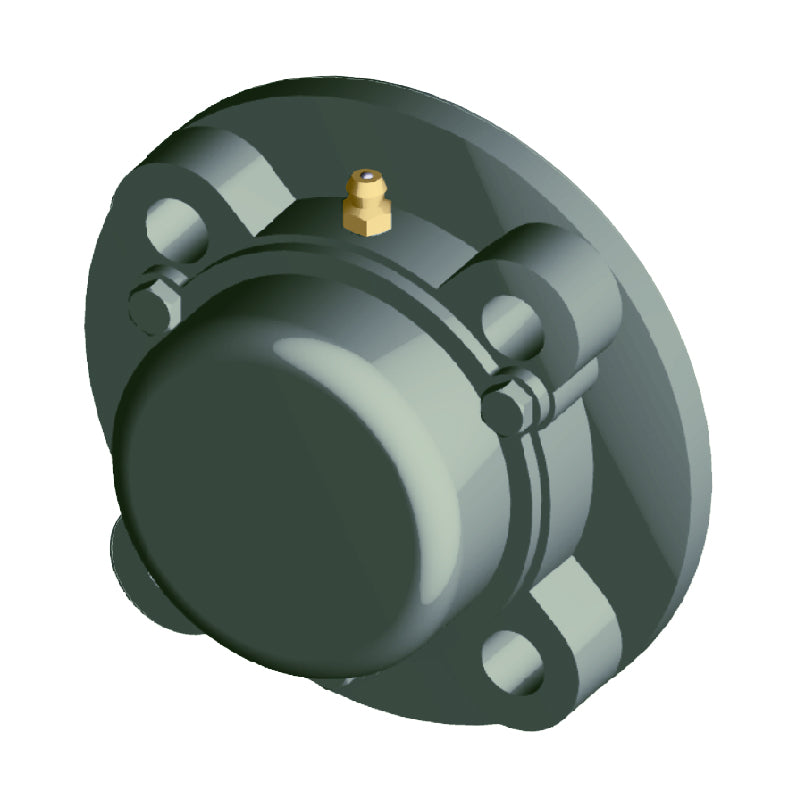

NTN M-CM-UCFC214D1 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN M-CM-UCFC214D1 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 125.2mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 70mm |
| L | 215mm |
| J | 177mm |
| (J<sub>1</sub>) | 125.2mm |
| A<sub>2</sub> | 17mm |
| N | 19mm |
| A<sub>3</sub> | 14mm |
| A<sub>1C</sub> | 39.5mm |
| A | 54mm |
| H<sub>3</sub> | 150mm |
| B | 74.6mm |
| S | 30.2mm |
| F (Min.) | 94mm |
| t<sub>2</sub> | 16mm |
| A<sub>5</sub> | 98mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 69 kN |
| Static load C<sub>0r</sub> | 44 kN |
| Fatigue load limit C<sub>u</sub> | 3.45 kN |
| --- | Unit information |
| Mass | 8 kg |
