SKU: M-C-UCT205D1-NTN

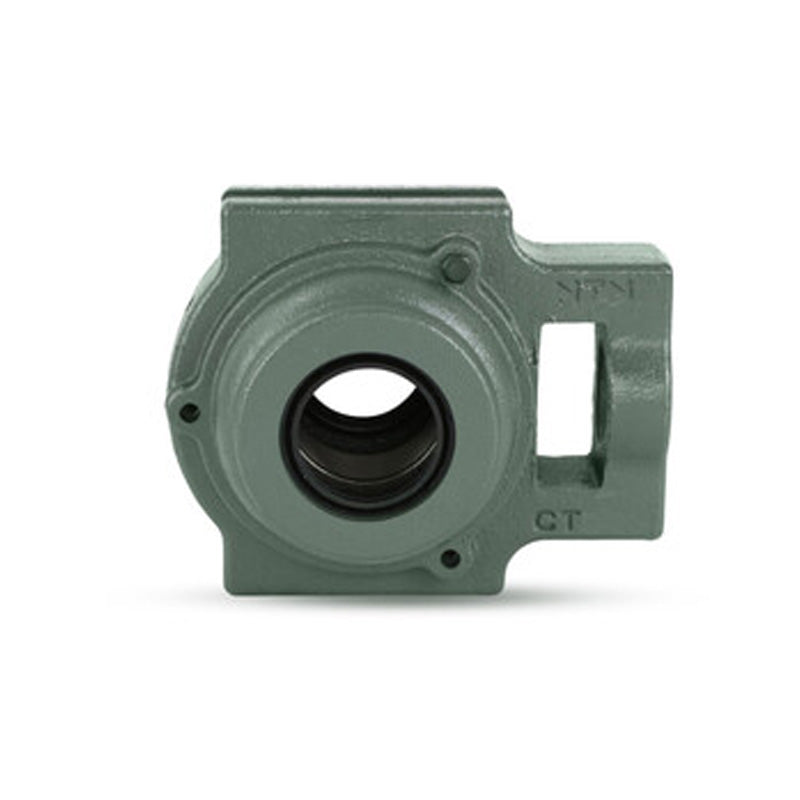

NTN M-C-UCT205D1 Metric Cast Iron Take Up Unit with 25mm Bore Bearing Unit with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN M-C-UCT205D1 Metric Cast Iron Take Up Unit with 25mm Bore Bearing Unit with Cast Iron Cover - Open Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| N<sub>1</sub> | 16mm |
| L<sub>2</sub> | 12mm |
| H<sub>2</sub> | 51mm |
| N<sub>2</sub> | 32mm |
| N | 19mm |
| L<sub>3</sub> | 51mm |
| A<sub>1</sub> | 12mm |
| H<sub>1</sub> | 76mm |
| H | 89mm |
| L | 97mm |
| A<sub>2</sub> | 24mm |
| A | 32mm |
| r | 35mm |
| L<sub>1</sub> | 62mm |
| B | 34.1mm |
| S | 14.3mm |
| L<sub>4</sub> | 100.5mm |
| A<sub>5</sub> | 70mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 15.5 kN |
| Static load C<sub>0r</sub> | 7.85 kN |
| Fatigue load limit C<sub>u</sub> | 0.55 kN |
| --- | Unit information |
| Mass | 1.1 kg |
