SKU: M-C-UCFL218D1-NTN

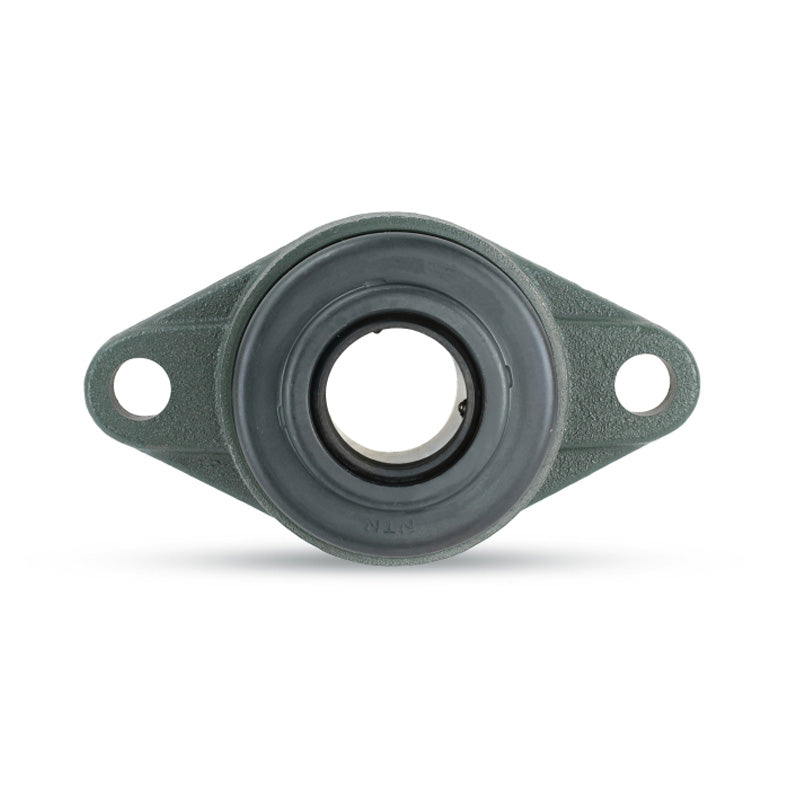

NTN M-C-UCFL218D1 Metric Two Bolt Oval Cast Iron Flange Housing with 90mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN M-C-UCFL218D1 Metric Two Bolt Oval Cast Iron Flange Housing with 90mm Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 90mm
- Style:
- UCFL
- Bolt Hole Centres:
- 265mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 90mm |
| H | 320mm |
| J | 265mm |
| A<sub>2</sub> | 40mm |
| A<sub>1</sub> | 24mm |
| A | 68mm |
| N | 25mm |
| L | 205mm |
| B | 96mm |
| S | 39.7mm |
| A<sub>5</sub> | 122mm |
| L<sub>1</sub> | 205mm |
| L<sub>2</sub> | 102mm |
| Fixing bolt | M22 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 106 kN |
| Static load C<sub>0r</sub> | 71.5 kN |
| Fatigue load limit C<sub>u</sub> | 5 kN |
| --- | Unit information |
| Mass | 13 kg |
