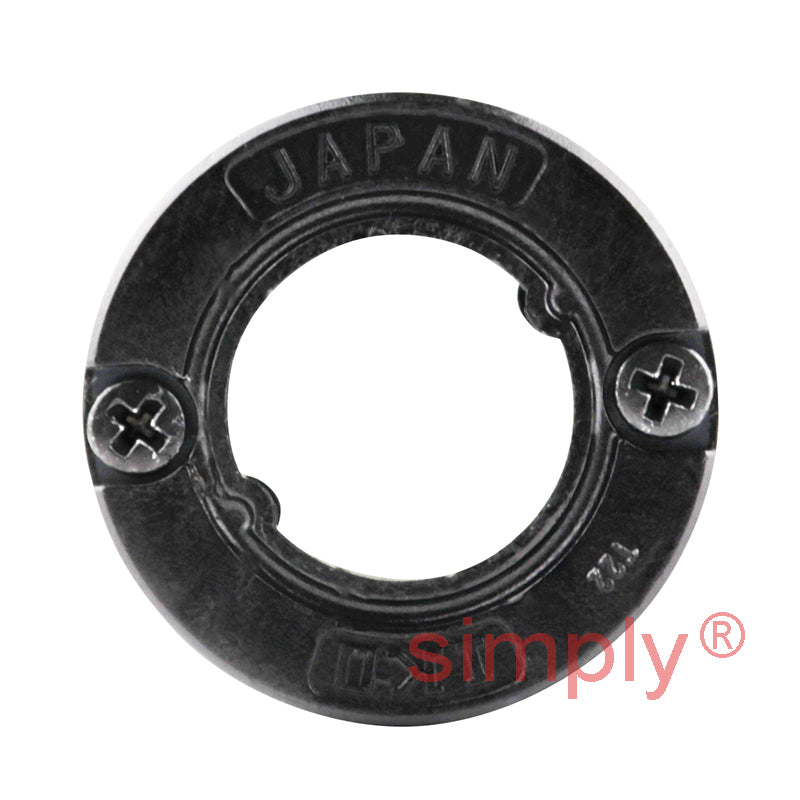

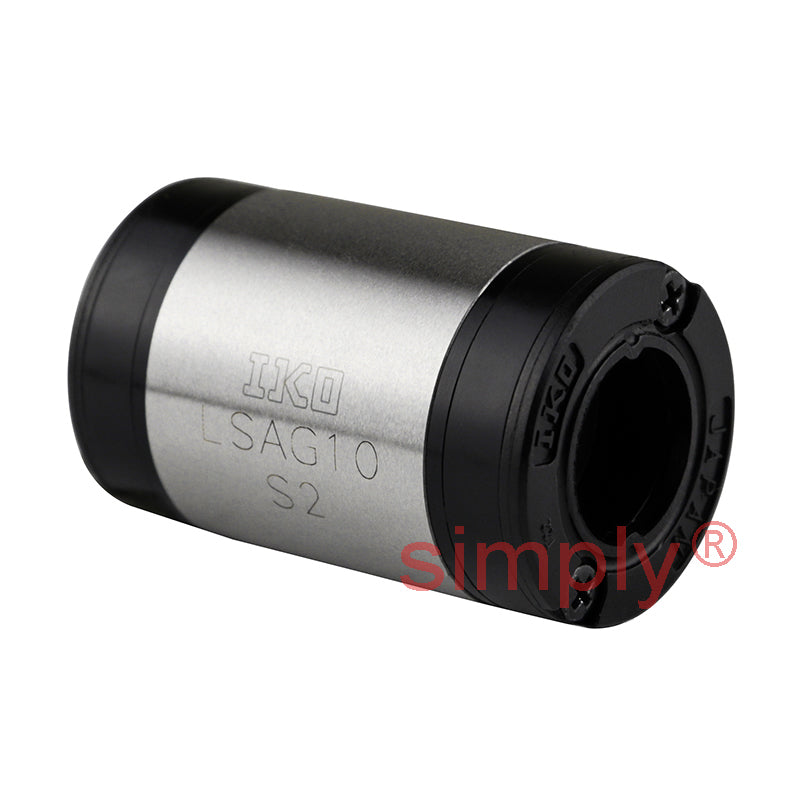

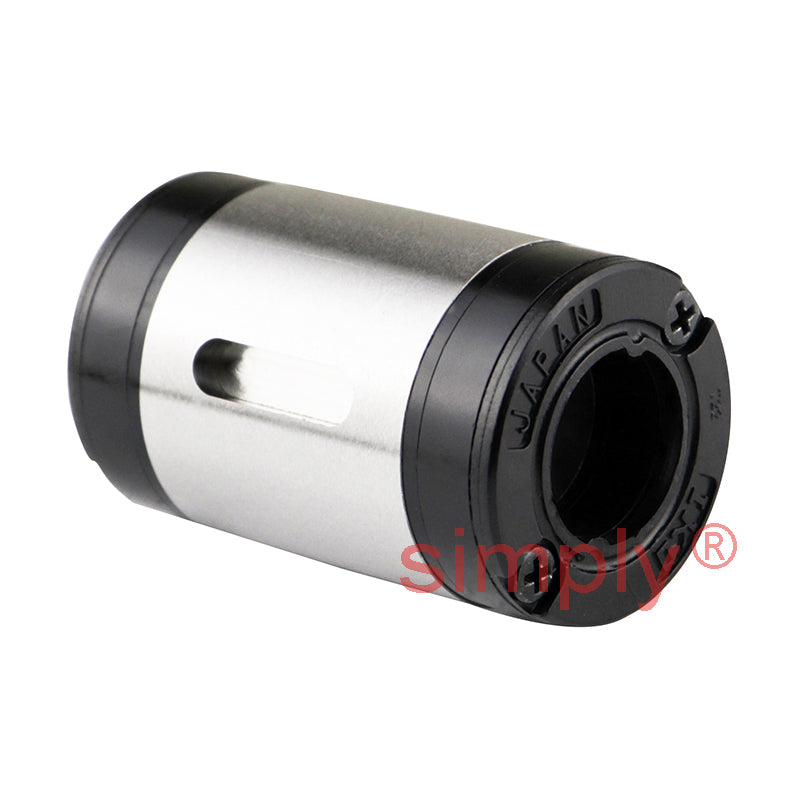

IKO LSAG10C1S2 Linear Ball Spline Bearing 10x19x30mm

Linear Ball Spline Bearings These bearings are capable of achieving endless linear motion of an external cylinder along a spline shaft. The steel balls make contact with the spline grooves and are capable of radial loads and rotating torque. These bearings are used for applications which require linear motion along a shaft while also providing rotating torque around a shaft.
Benefits: Interchangeable, compact design with high rigidity, high positioning accuracy, smooth motion with low friction.

Brand / Quality:

IKO - High Quality

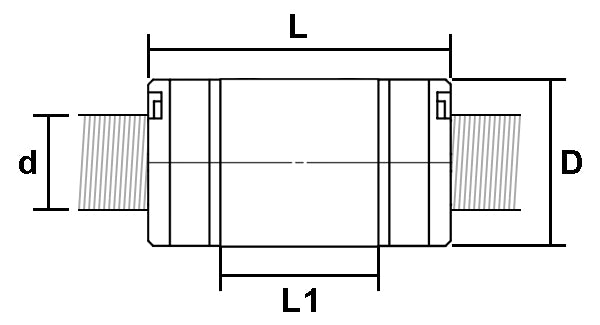

Inside Diameter:

10mm

Outside Diameter:

19mm

Length:

30mm
