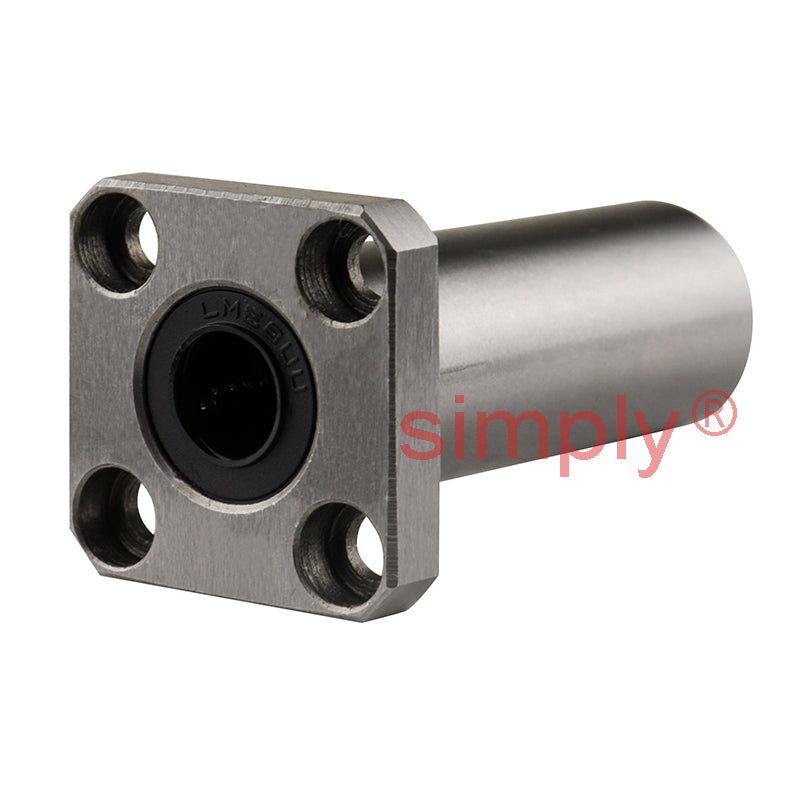

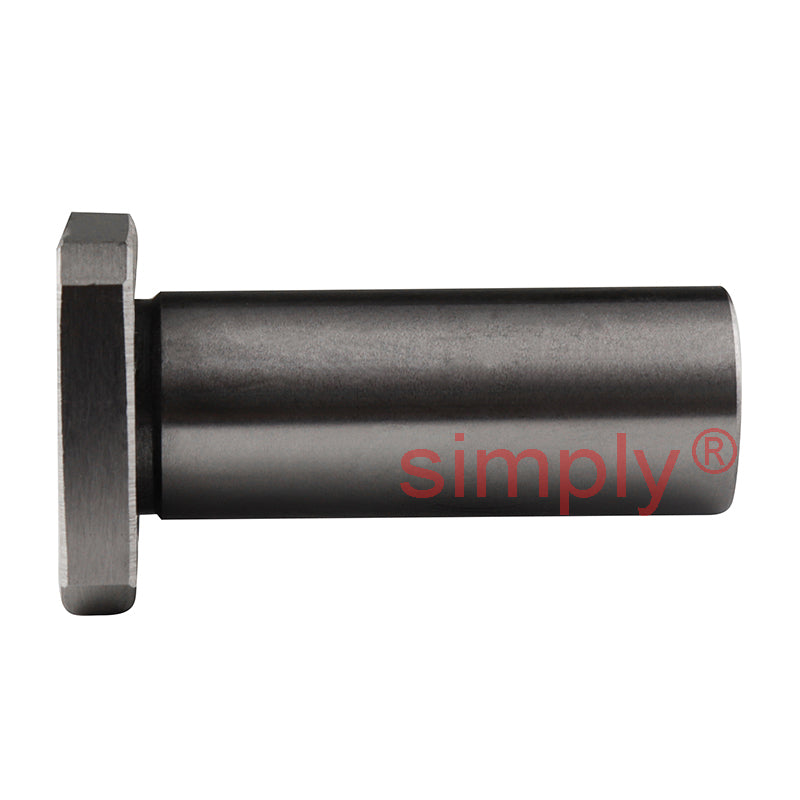

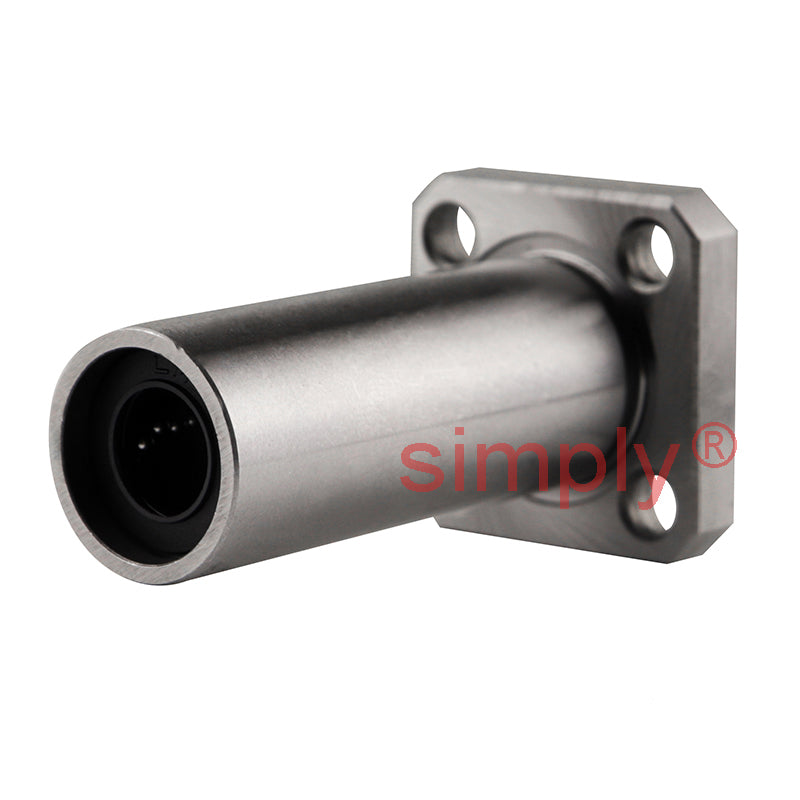

• LMEK8LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 8x16x46mm
  • LMEK8LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 8x16x46mm
  • LMEK8LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 8x16x46mm
1 3

SKU: LMEK-8-L-UU-EU

LMEK8LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 8x16x46mm

LMEK8LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 8x16x46mm
€35,95 ex VAT
€35,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €26,69
5+ €25,19
9+ €24,89
19+ €24,59
49+ €24,29
74+ €23,99
99+ €22,49
199+ €22,19
249+ €21,89
499+ €21,59
999+ €20,99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LMEK_LNG_HEAD
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
8mm
Outside Diameter:
16mm
Length:
46mm
Seals / Shields:
Rubber Sealed

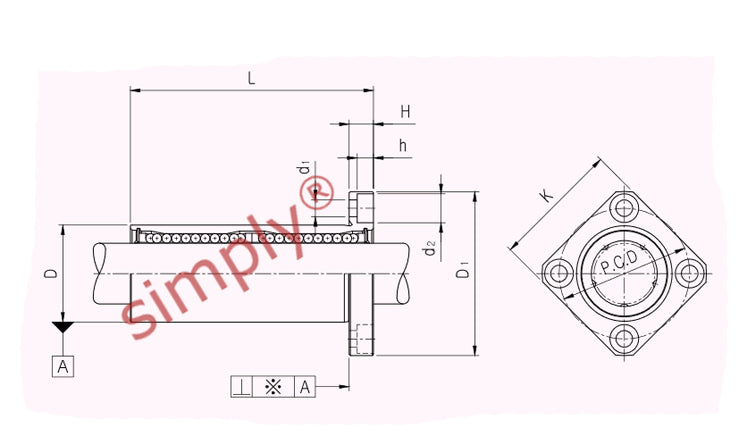

Technical
Working Bore Diameter dr. 8mm
Bore Clearance +0.009/-0.001mm
D 16mm
D Clearance 0/-0.009mm
L 46mm
L Clearance 0/-0.3mm
D<sub>1</sub> 32mm
D<sub>1</sub> Clearance 0/-0.2mm
H 5mm
PCD 24mm
K 25mm
d<sub>1</sub> 3.4mm
d<sub>2</sub> 6.5mm
h 3.3mm
Squareness um 15
Basic Load Rating - Dynamic C 430 N
Basic Load Rating - Static Co 780 N
No of Ball Rows 4
