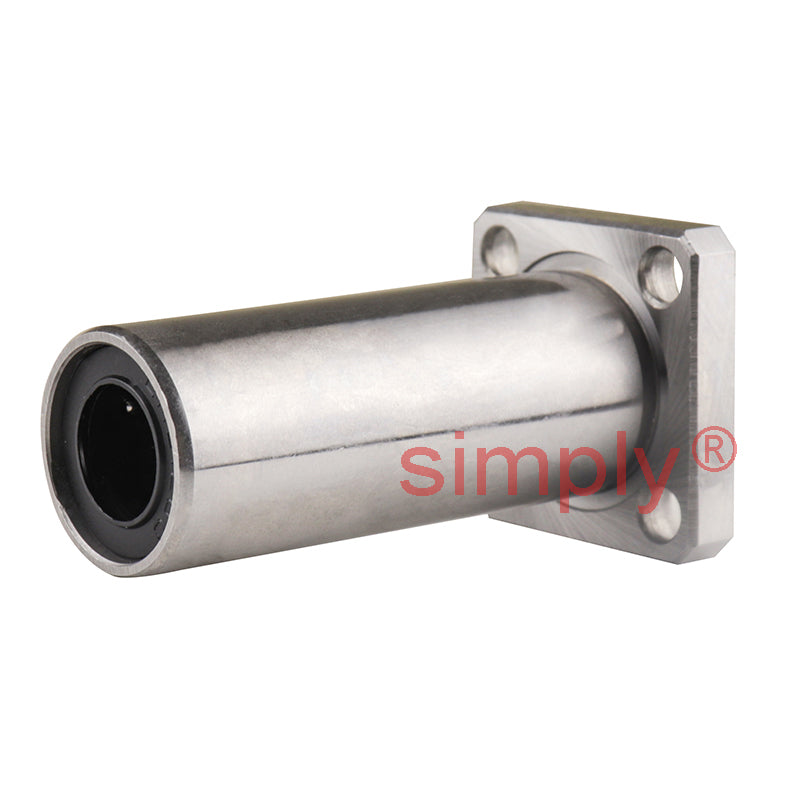

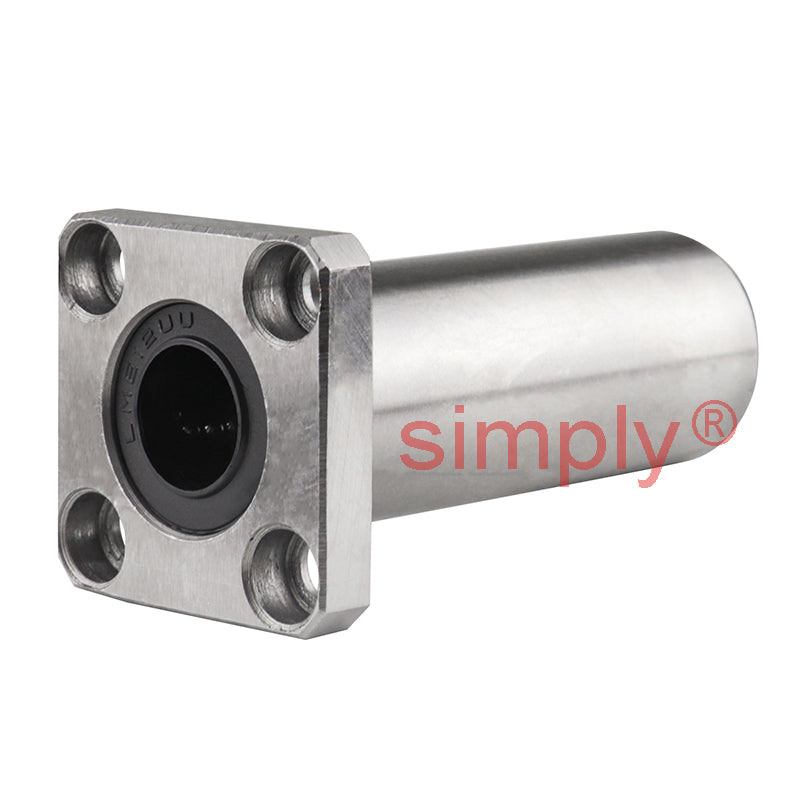

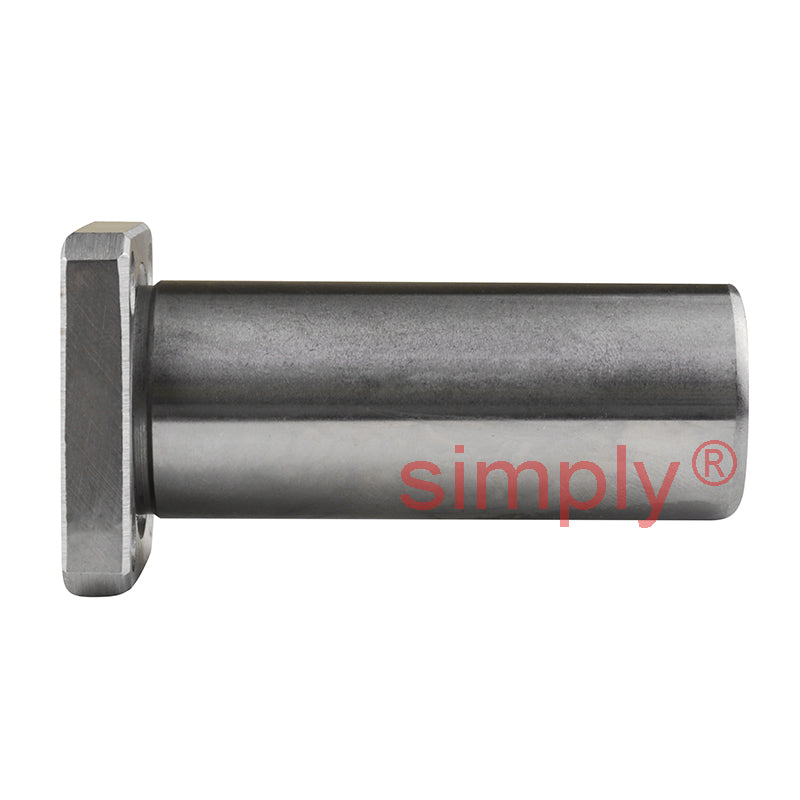

• LMEK12LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 12x22x57mm
  • LMEK12LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 12x22x57mm
  • LMEK12LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 12x22x57mm
1 3

SKU: LMEK-12-L-UU-EU

LMEK12LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 12x22x57mm

LMEK12LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 12x22x57mm
€42,95 ex VAT
€42,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €32,60
5+ €30,77
9+ €30,40
19+ €30,04
49+ €29,67
74+ €29,30
99+ €27,47
199+ €27,10
249+ €26,74
499+ €26,37
999+ €25,64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LMEK_LNG_HEAD
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
12mm
Outside Diameter:
22mm
Length:
57mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 12mm
Bore Clearance +0.009/-0.001mm
D 22mm
D Clearance 0/-0.011mm
L 57mm
L Clearance 0/-0.3mm
D<sub>1</sub> 42mm
D<sub>1</sub> Clearance 0/-0.2mm
H 6mm
PCD 32mm
K 32mm
d<sub>1</sub> 4.5mm
d<sub>2</sub> 8mm
h 4.4mm
Squareness um 15
Basic Load Rating - Dynamic C 650 N
Basic Load Rating - Static Co 120 N
No of Ball Rows 4
