SKU: LMEF-8-L-UU-EU

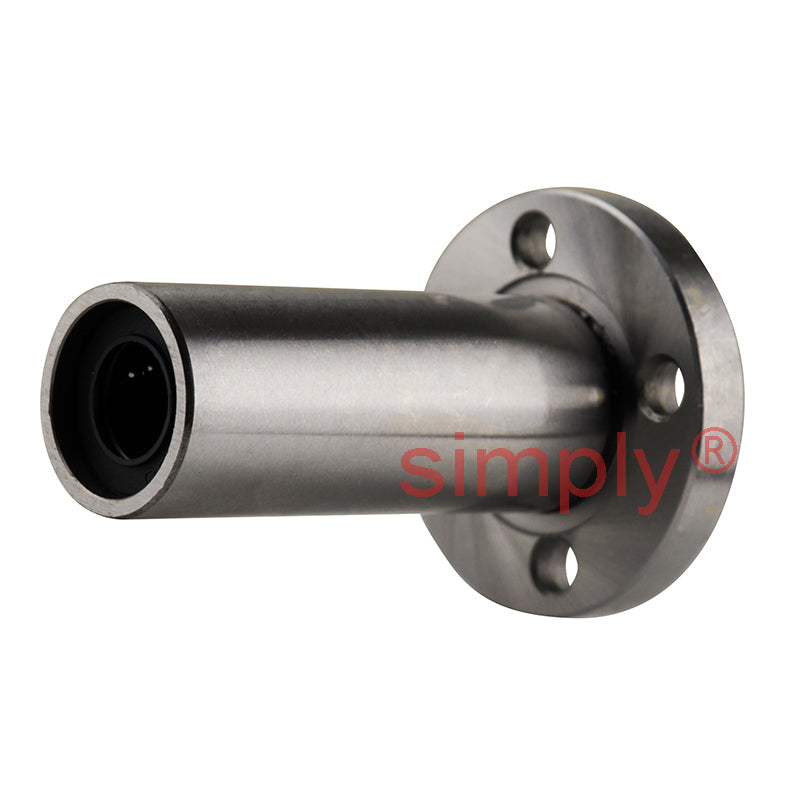

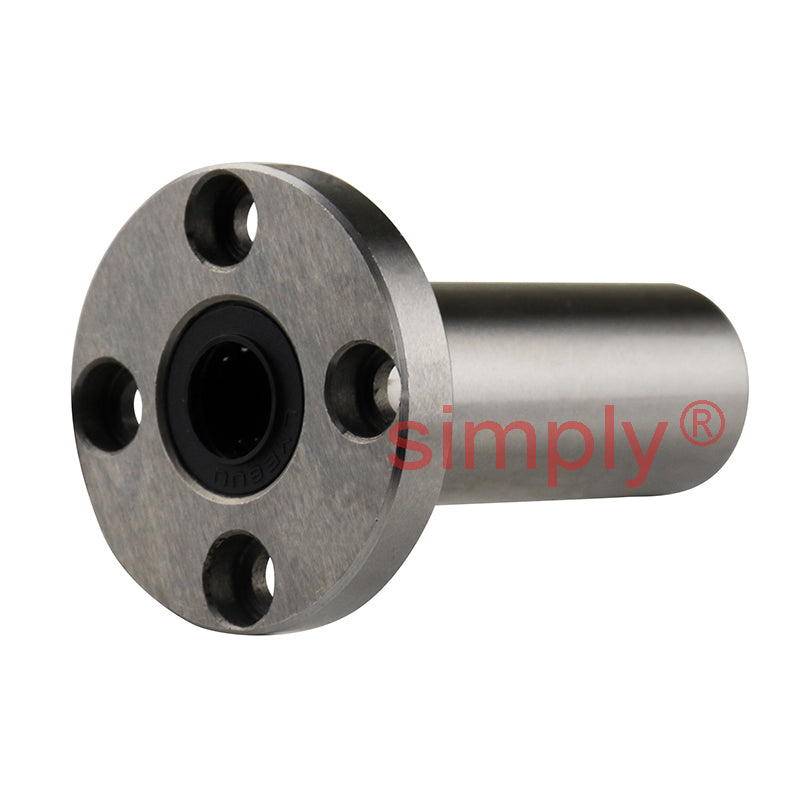

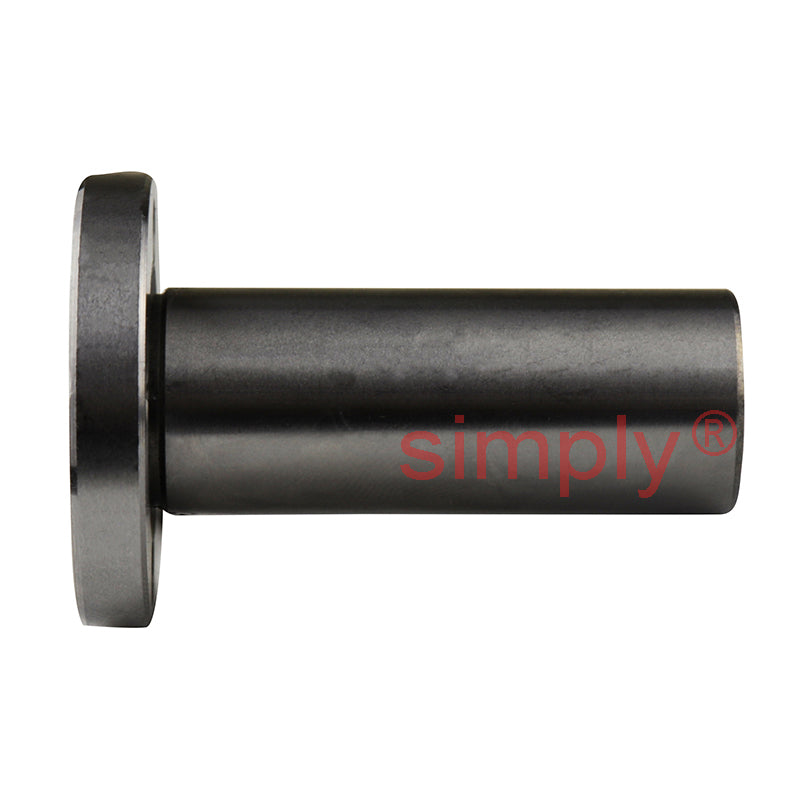

LMEF8LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 8x16x45mm

LMEF8LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 8x16x45mm
€35,95 ex VAT
€35,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €27,17
5+ €25,64
9+ €25,33
19+ €25,03
49+ €24,72
74+ €24,42
99+ €22,89
199+ €22,59
249+ €22,28
499+ €21,98
999+ €21,37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LMEF_LNG_HEAD
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
8mm
Outside Diameter:
16mm
Length:
45mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 8mm
Bore Clearance +0.009/-0.001mm
D 16mm
D Clearance 0/-0.009mm
L 45mm
L Clearance 0/-0.3mm
B 32mm
B Clearance 0/-0.2mm
H 5mm
PCD 24mm
d<sub>1</sub> 3.4mm
d<sub>2</sub> 6.5mm
h 3.3mm
Squareness um 15
Basic Load Rating - Dynamic C 430 N
Basic Load Rating - Static Co 780 N
No of Ball Rows 4
