• LMEF60UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 60x90x125mm
  • LMEF60UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 60x90x125mm
  • LMEF60UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 60x90x125mm
1 3

SKU: LMEF-60-UU-EU

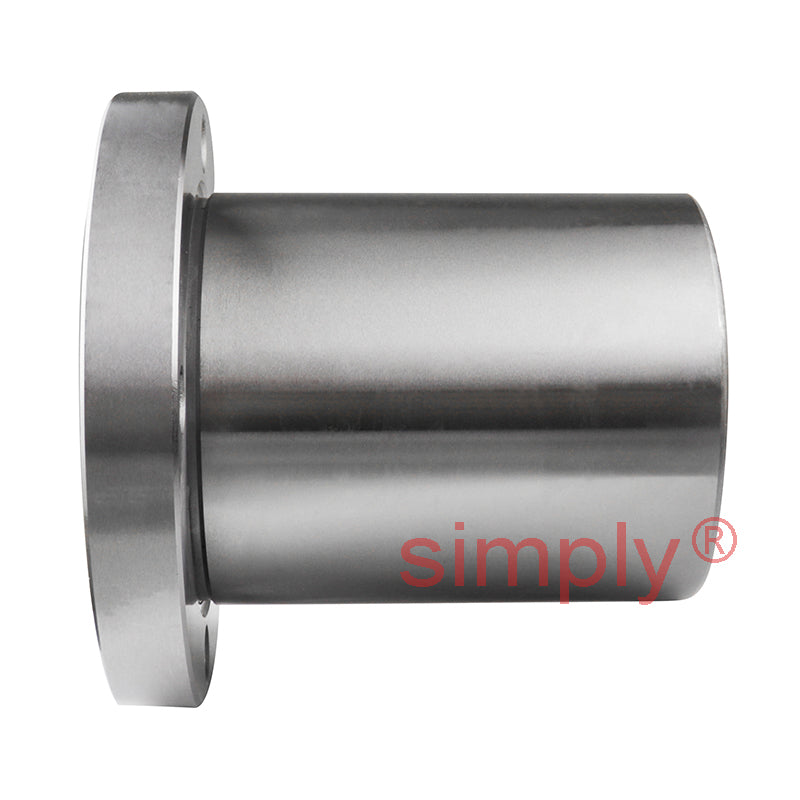

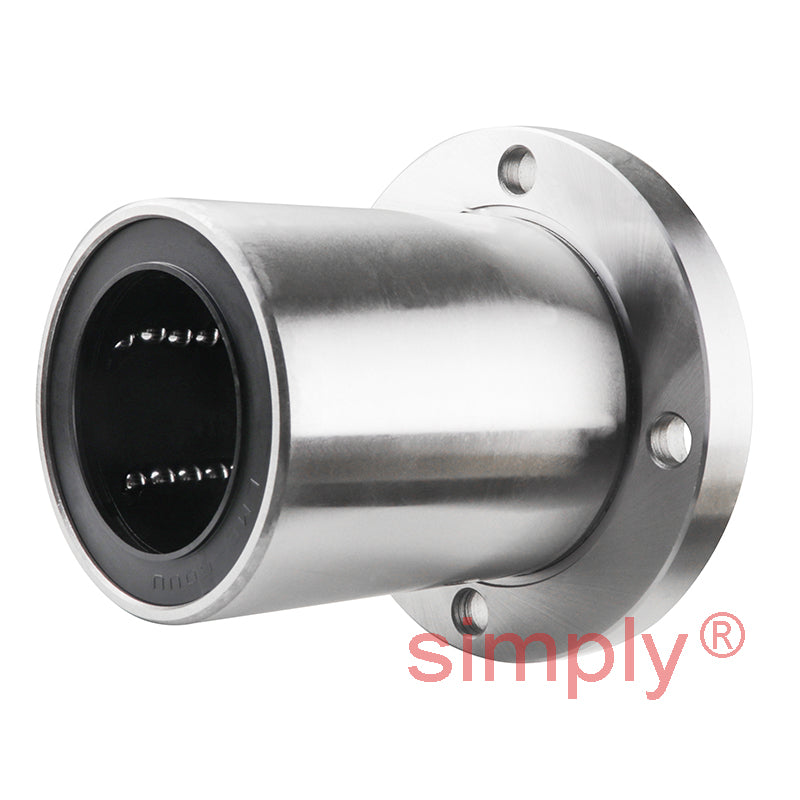

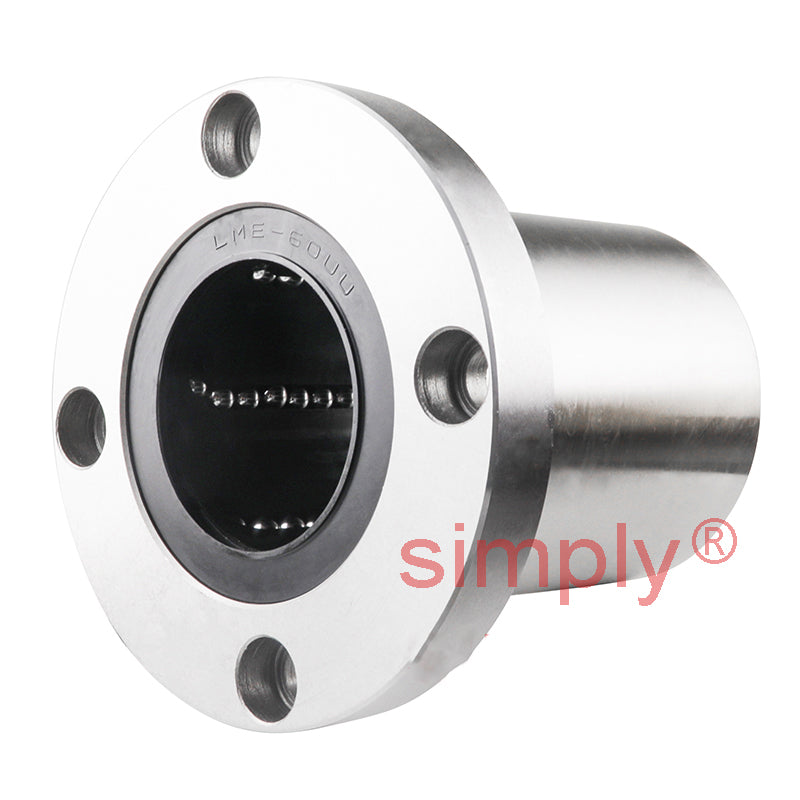

LMEF60UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 60x90x125mm

LMEF60UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 60x90x125mm
€76,95 ex VAT
€76,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €58,19
5+ €54,92
9+ €54,27
19+ €53,62
49+ €52,96
74+ €52,31
99+ €49,04
199+ €48,38
249+ €47,73
499+ €47,08
999+ €45,77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LMEF_HEAD
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
60mm
Outside Diameter:
90mm
Length:
125mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 60mm
Bore Clearance +0.013/-0.002mm
D 90mm
D Clearance 0/-0.015mm
L 125mm
L Clearance 0/-0.4mm
B 134mm
B Clearance 0/-0.3mm
H 18mm
PCD 112mm
d<sub>1</sub> 11mm
d<sub>2</sub> 17.5mm
h 10.8mm
Squareness um 25mm
Basic Load Rating - Dynamic C 4700 N
Basic Load Rating - Static Co 9990 N
No of Ball Rows 6
Weight 3.18 kg
