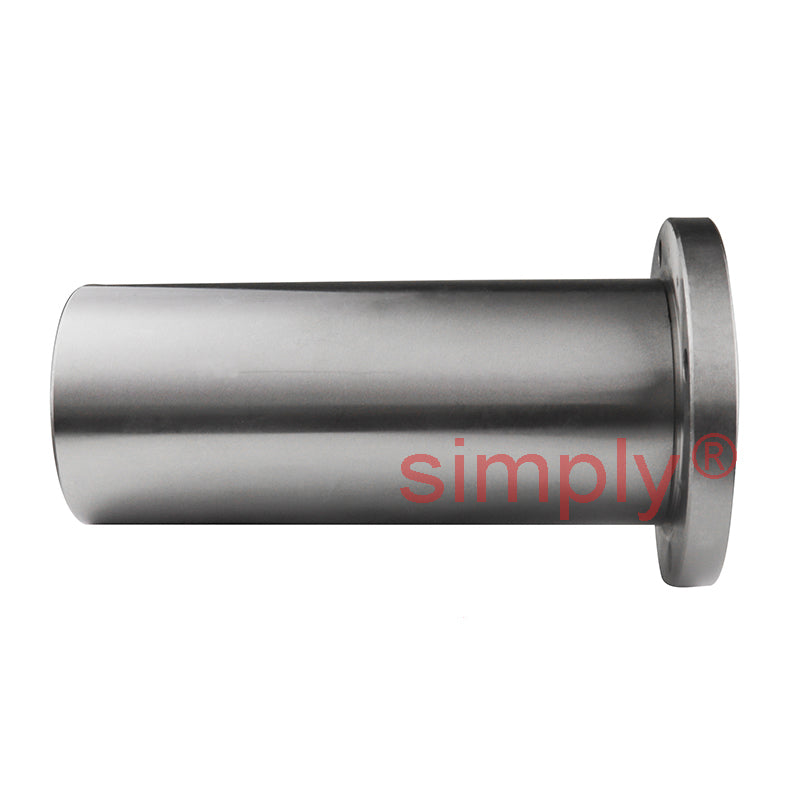

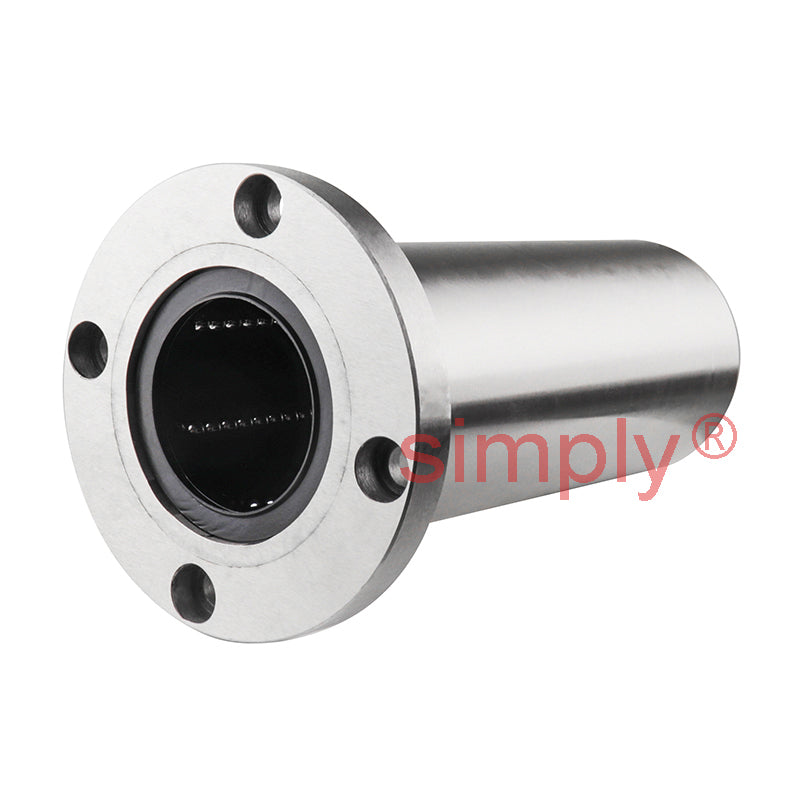

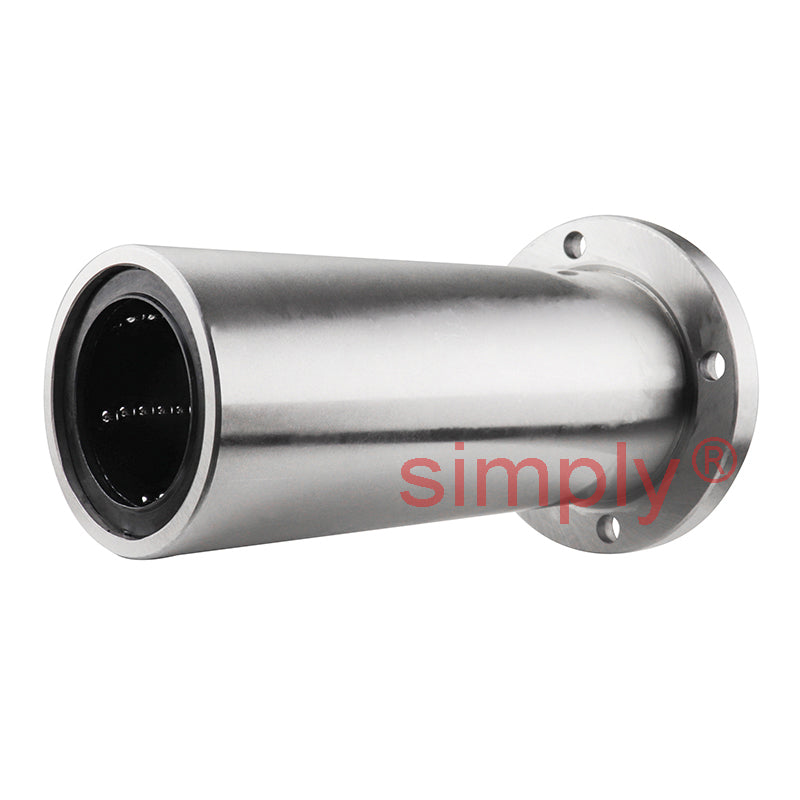

• LMEFL60UU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 60x90x211mm
  • LMEFL60UU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 60x90x211mm
  • LMEFL60UU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 60x90x211mm
1 3

SKU: LMEF-60-L-UU-EU

LMEFL60UU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 60x90x211mm

LMEFL60UU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 60x90x211mm
€133,95 ex VAT
€133,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €101,51
5+ €95,81
9+ €94,67
19+ €93,53
49+ €92,39
74+ €91,25
99+ €85,55
199+ €84,41
249+ €83,26
499+ €82,12
999+ €79,84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LMEF_LNG_HEAD
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
60mm
Outside Diameter:
90mm
Length:
211mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 60mm
Bore Clearance +0.016/-0.004mm
D 90mm
D Clearance 0/-0.020mm
L 211mm
L Clearance 0/-0.4mm
B 134mm
B Clearance 0/-0.3mm
H 18mm
PCD 112mm
d<sub>1</sub> 11mm
d<sub>2</sub> 17.5mm
h 10.8mm
Squareness um 30
Basic Load Rating - Dynamic C 7650 N
Basic Load Rating - Static Co 20000 N
No of Ball Rows 6
