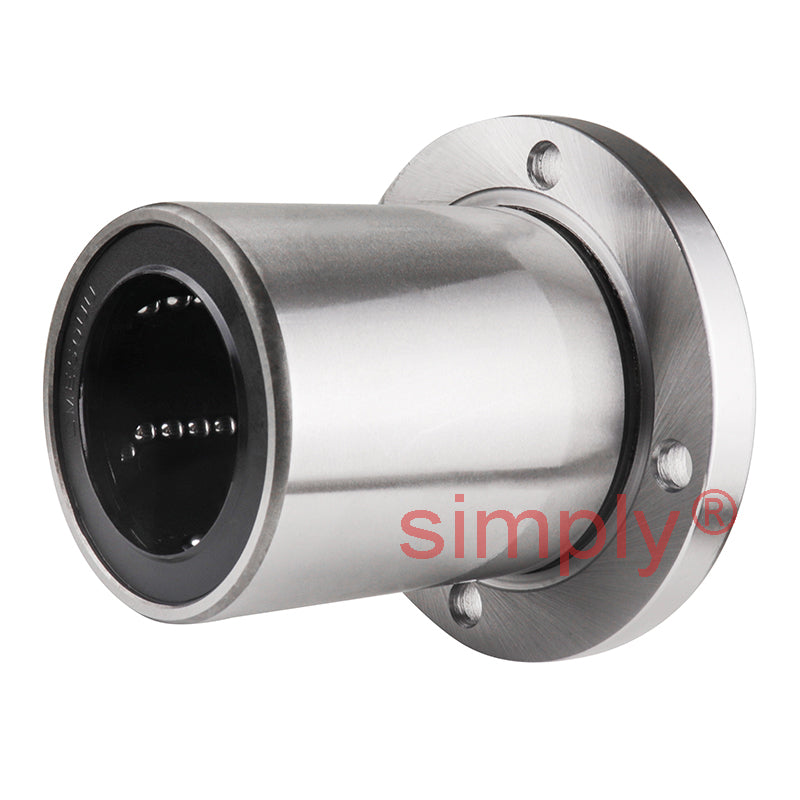

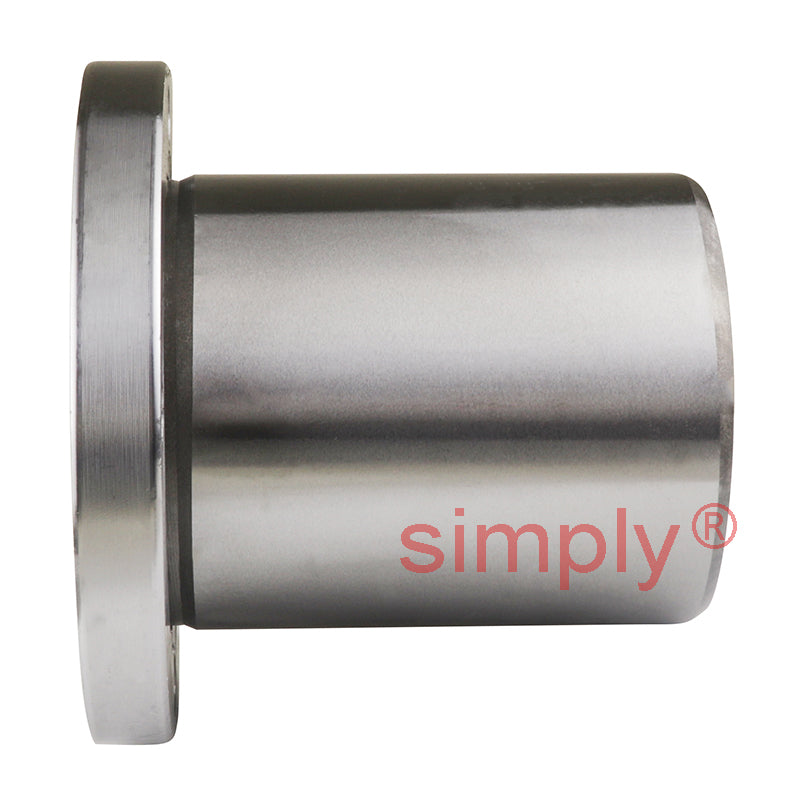

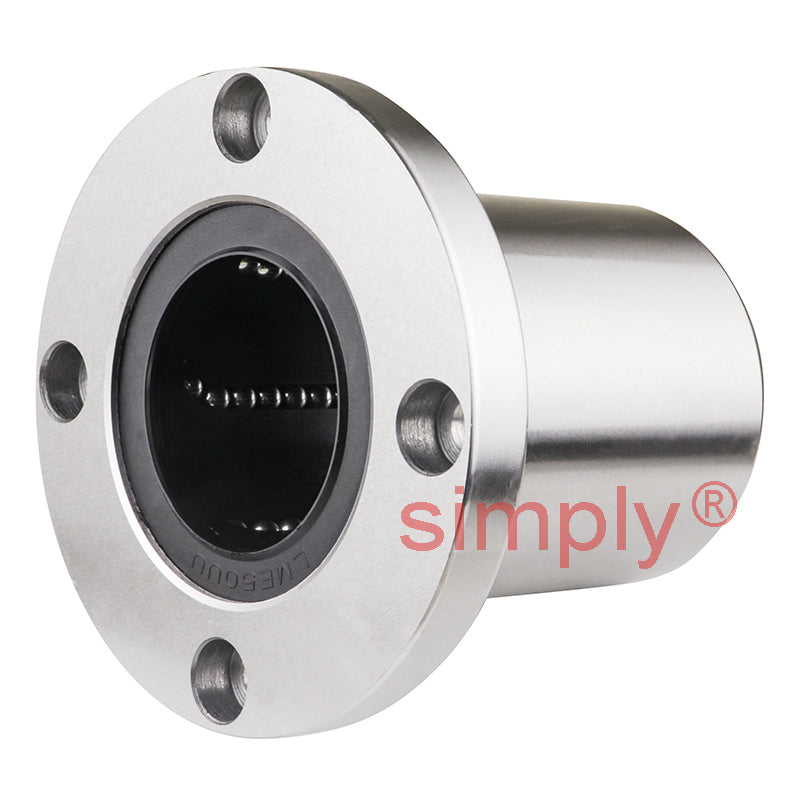

• LMEF50UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 50x75x100mm
  • LMEF50UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 50x75x100mm
  • LMEF50UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 50x75x100mm
1 3

SKU: LMEF-50-UU-EU

LMEF50UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 50x75x100mm

LMEF50UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 50x75x100mm
€129,95 ex VAT
€129,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €98,66
5+ €93,11
9+ €92,00
19+ €90,90
49+ €89,79
74+ €88,68
99+ €83,14
199+ €82,03
249+ €80,92
499+ €79,81
999+ €77,59

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LMEF_HEAD
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
50mm
Outside Diameter:
75mm
Length:
100mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 50mm
Bore Clearance +0.013/-0.002mm
D 75mm
D Clearance 0/-0.013mm
L 100mm
L Clearance 0/-0.3mm
B 112mm
B Clearance 0/-0.3mm
H 13mm
PCD 94mm
d<sub>1</sub> 9mm
d<sub>2</sub> 14mm
h 8.6mm
Squareness um 20mm
Basic Load Rating - Dynamic C 3820 N
Basic Load Rating - Static Co 7930 N
No of Ball Rows 6
Weight 1.73 kg
