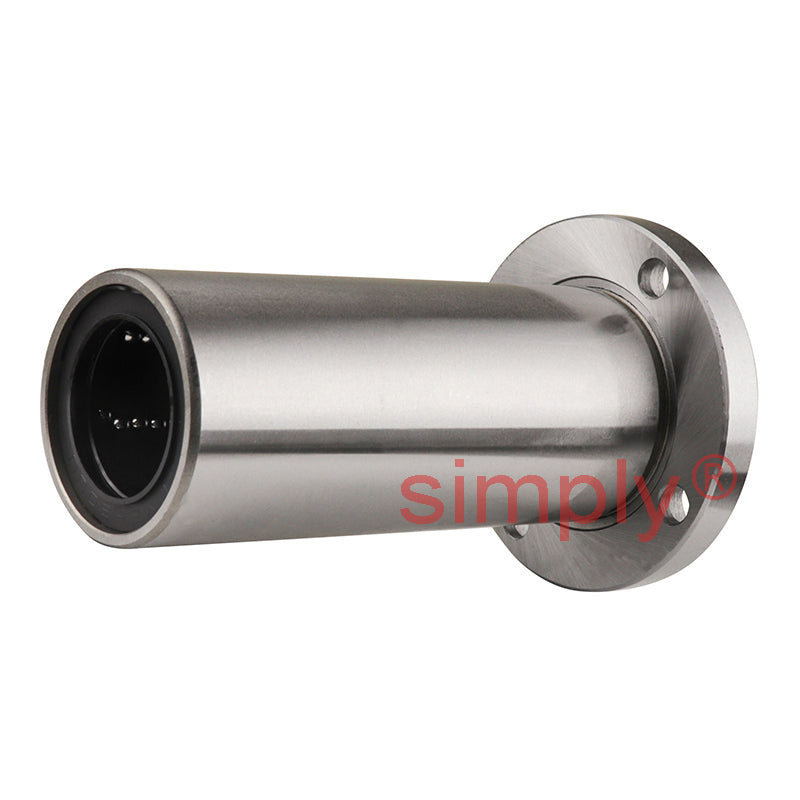

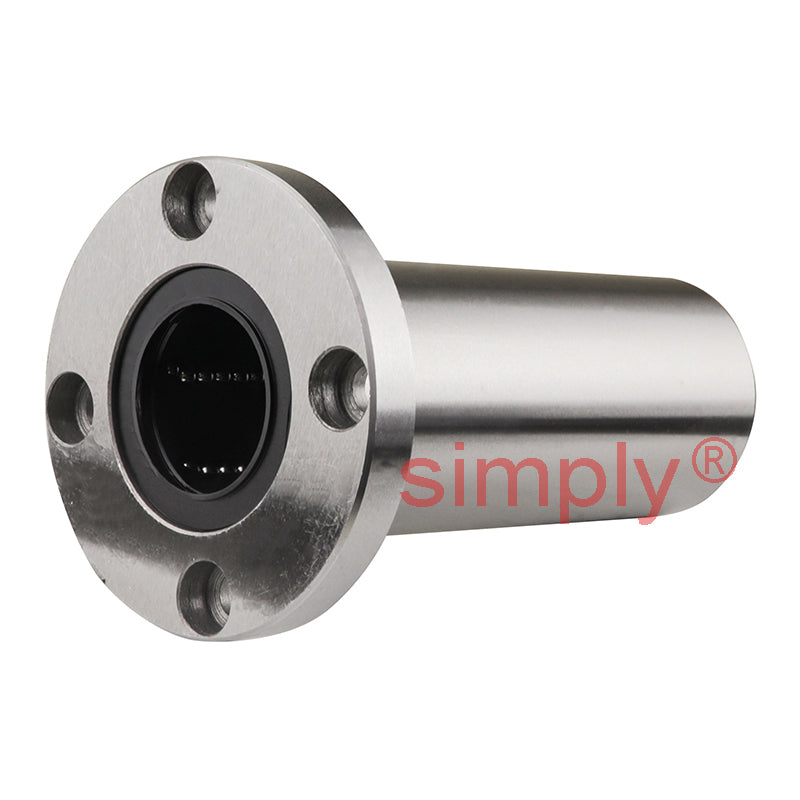

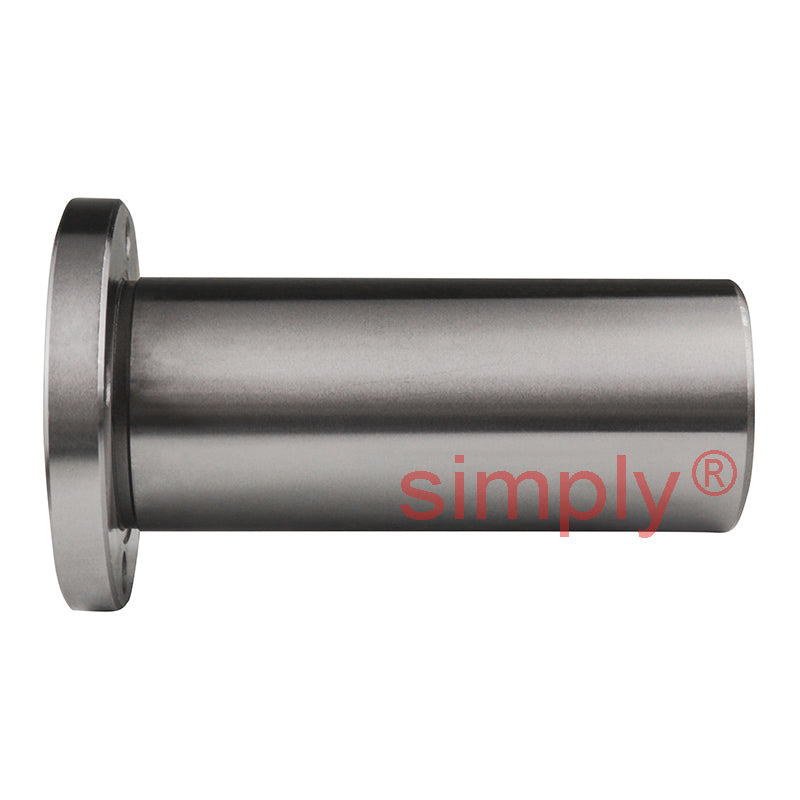

• LMEF40LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 40x62x154mm
  • LMEF40LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 40x62x154mm
  • LMEF40LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 40x62x154mm
1 3

SKU: LMEF-40-L-UU-EU

LMEF40LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 40x62x154mm

LMEF40LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 40x62x154mm
€191,95 ex VAT
€191,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €145,12
5+ €136,97
9+ €135,34
19+ €133,71
49+ €132,08
74+ €130,45
99+ €122,29
199+ €120,66
249+ €119,03
499+ €117,40
999+ €114,14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LMEF_LNG_HEAD
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
40mm
Outside Diameter:
62mm
Length:
154mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 40mm
Bore Clearance +0.016/-0.004mm
D 62mm
D Clearance 0/-0.015mm
L 154mm
L Clearance 0/-0.4mm
B 98mm
B Clearance 0/-0.3mm
H 13mm
PCD 80mm
d<sub>1</sub> 9mm
d<sub>2</sub> 14mm
h 8.6mm
Squareness um 20
Basic Load Rating - Dynamic C 3430 N
Basic Load Rating - Static Co 8040 N
No of Ball Rows 6
