SKU: LMB.24.UU.EU

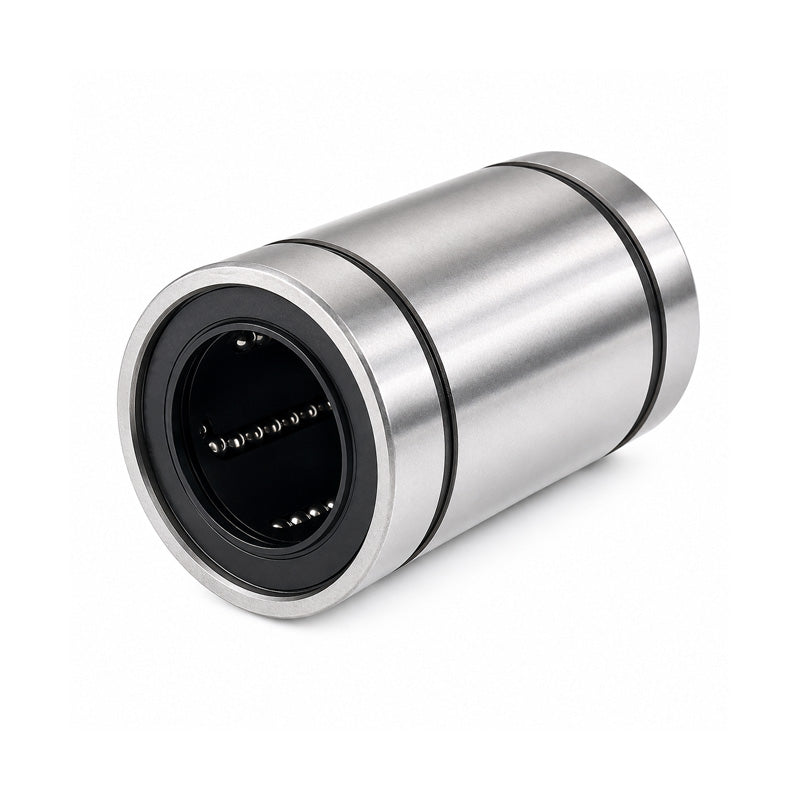

LMB24UU Imperial Closed Linear Ball Bushing with Rubber Seals 1.5x2.375x3 inch

LMB24UU Imperial Closed Linear Ball Bushing with Rubber Seals 1.5x2.375x3 inch

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Inside Diameter dr 1.5 inch Tol - 0 to + 8µm
Outside Diameter D 2.375 inch Tol - 0 to + 19µm
Length L 3 inch Tol - 0 to + 300µm
W 0.0859 inch
D1 0.0859 inch
B 2.4118 inch
Eccentricity 12 to 20µm
Dynamic load C 222 kgf
Static load C<sub>o</sub> 410 kgf
Weight 720 g
Number of ball rows 6
Tolerances dr & D Apply to closed type only
