SKU: LM503349310CL7C-EU

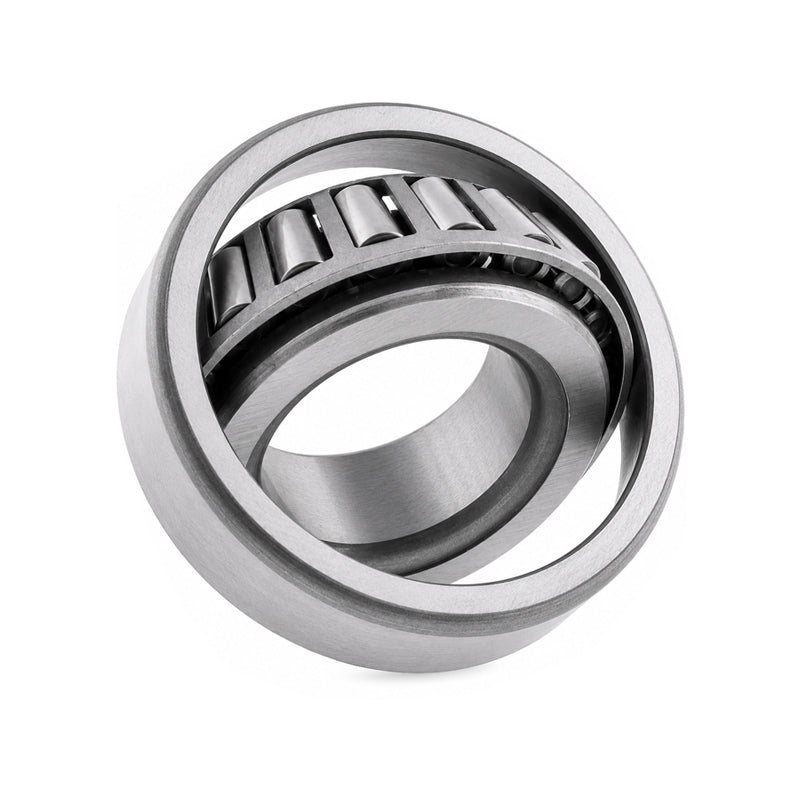

LM503349310CL7C Premier Budget Metric Single Row Taper Roller Bearing 46x75x18mm
LM503349310CL7C Premier Budget Metric Single Row Taper Roller Bearing 46x75x18mm
Out of stock
Share this product
Description
Description
Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 46mm
- Outside Diameter:
- 75mm
- Width:
- 18mm
- Seals / Shields:
- None
Technical
Technical
| d | 46mm |
|---|---|
| D | 75mm |
| T | 18mm |
| Dynamic load C | 50.1 kN |
| Static load Co | 71 kN |
| Fatigue load limit Pu | 7.65 kN |
| Reference speed | 6300 rpm |
| Limiting speed | 9500 rpm |
| Weight | 0.3 kg |
| d1 | 60.4mm |
| B | 18mm |
| C | 14mm |
| r1r2 min | 2.3mm |
| r3r4 min | 1.5mm |
| a | 16mm |
| da max | 53mm |
| db min | 55mm |
| Da min | 67mm |
| Da max | 67.5mm |
| Db min | 71mm |
| Ca min | 2mm |
| Cb min | 4mm |
| ra max | 2mm |
| rb max | 1.5mm |
| e | 0.4 |
| Y | 1.5 |
| Y0 | 0.8 |
