SKU: LM282549D/LM282510/LM282510EA-TIM

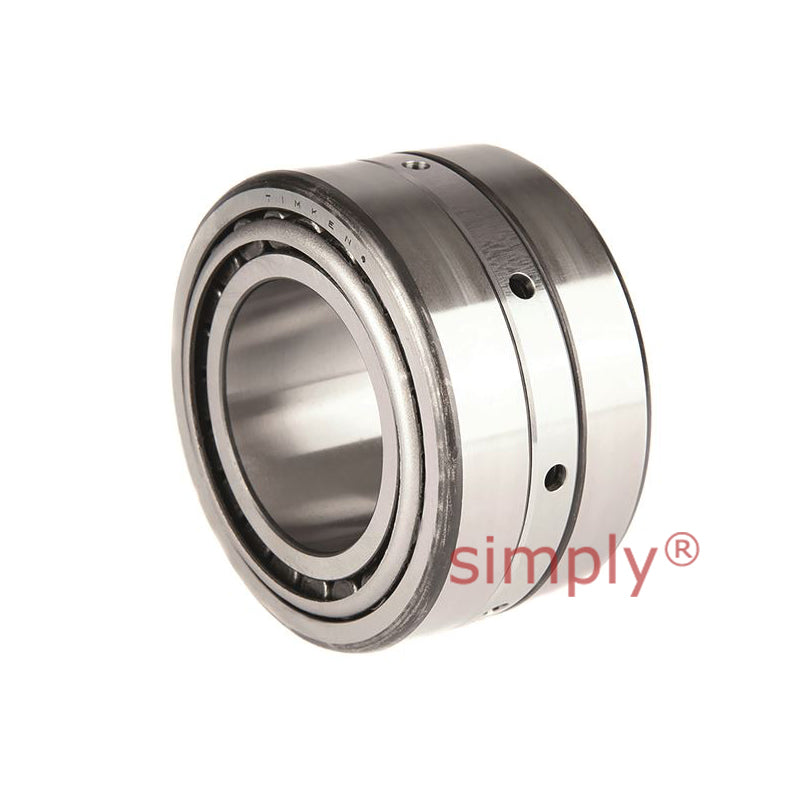

Timken LM282549D/LM282510/LM282510EA TDI Two-Row Taper Roller Bearing 27.875x36.625x10.75x10.75 inch
Timken LM282549D/LM282510/LM282510EA TDI Two-Row Taper Roller Bearing 27.875x36.625x10.75x10.75 inch
Out of stock
Description
Description

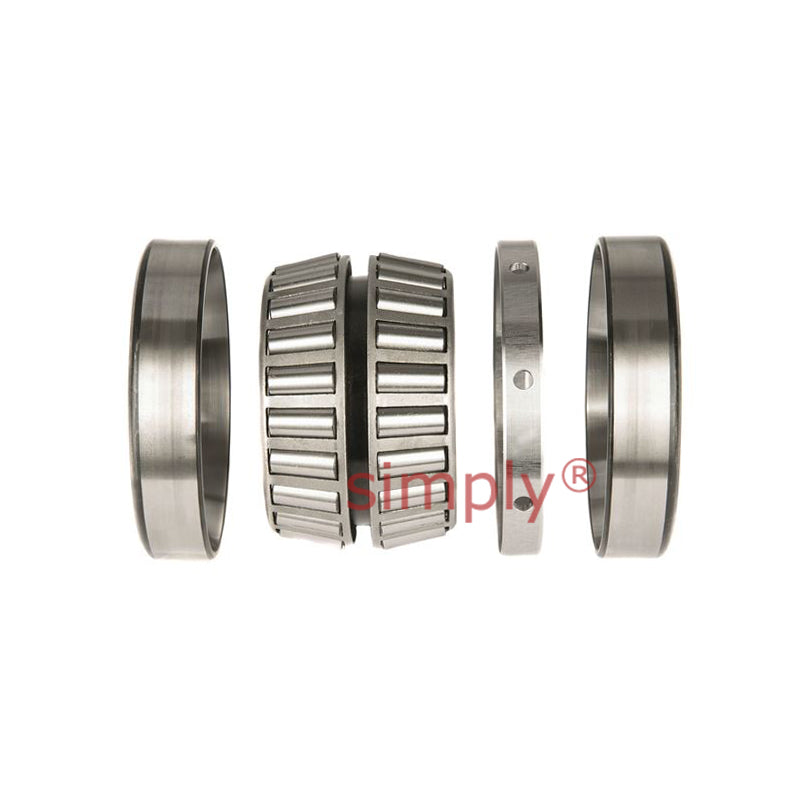

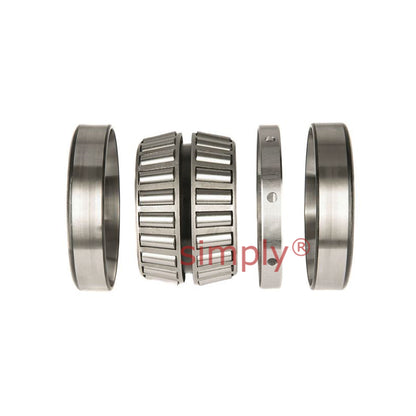

Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 708.03mm = 27.875 (27-7/8) inch
- Outside Diameter:
- 930.28mm = 36.625 (36-5/8) inch
- Width:
- 273.05mm = 10.75 (10-3/4) inch
Technical
Technical
| d | 708.025mm = 27.875 inch |
|---|---|
| D | 930.275mm = 36.625 inch |
| T | 273.05mm = 10.75 inch |
| C | 273.05mm = 10.75 inch |
| Dynamic (1) C1 | 7910000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.03 |
| Factors (5) Y2 | 3.02 |
| Dynamic (2) C90 | 1180000N |
| Dynamic (2) Ca90 | 670000N |
| Dynamic (2) C90(2) | 2050000N |
| Factors (5) K | 1.76 |
| Shaft max shaft fillet radius R (3) | 3.3mm = 0.13 inch |
| Shaft backing shoulder diameter da | 741mm = 29.17 inch |
| Housing max shaft fillet radius r (3) | 6.4mm = 0.25 inch |
| Housing backing shoulder diameter Db | 879mm = 34.61 inch |
| G1 | 18200 |
| G2 | 1090 |
| Cg | 0.3379 |
