SKU: LFTC15-RHP

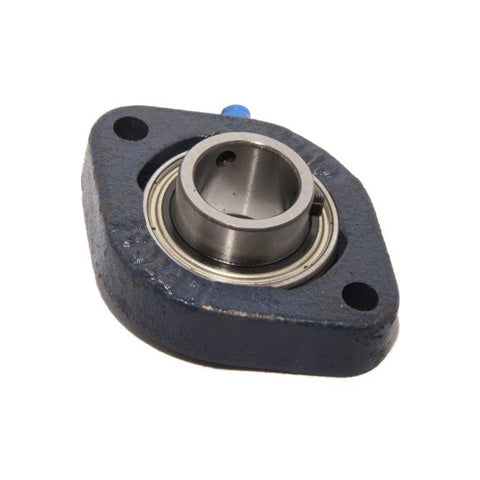

RHP LFTC15 Two Bolt Oval Cast Iron Flange Housing Bearing 15mm Bore
RHP LFTC15 Two Bolt Oval Cast Iron Flange Housing Bearing 15mm Bore
Regular price
€37,95
ex VAT
Regular price
Sale price
€37,95
ex VAT
In stock
Price Break
10+
€28,50
20+
€26,90
30+
€26,58
40+
€26,26
50+
€25,94
75+
€25,62
100+
€24,02
200+
€23,70
250+
€23,38
500+
€23,06
1000+
€22,42
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP LFTC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 15mm
- Style:
- LFTC
- Bolt Hole Centres:
- 63.5mm = 2.5 (2-1/2) inch

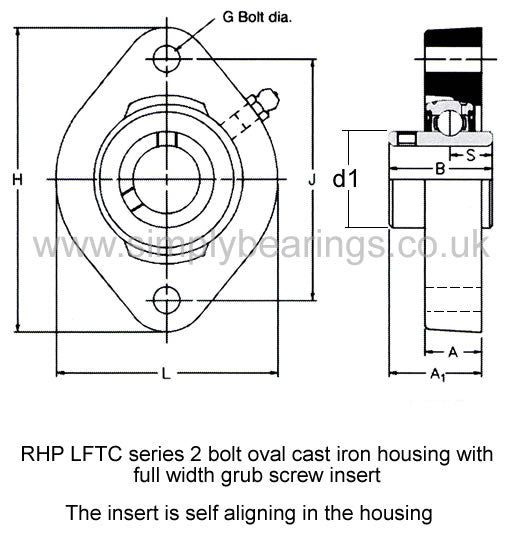

Technical
Technical
| Bore | 15mm |
|---|---|
| L | 2.303 inch |
| H | 3.189 inch |
| J | 2.5 inch |
| G | 0.25 inch |
| A | 0.59 inch |
| A1 | 0.956 inch |
| B | 1.078 inch |
| s | 0.455 inch |
| d1 | 0.953 inch |
| Dynamic load | 9550 N |
| Static load | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1017-15G+insonly">1017-15G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
