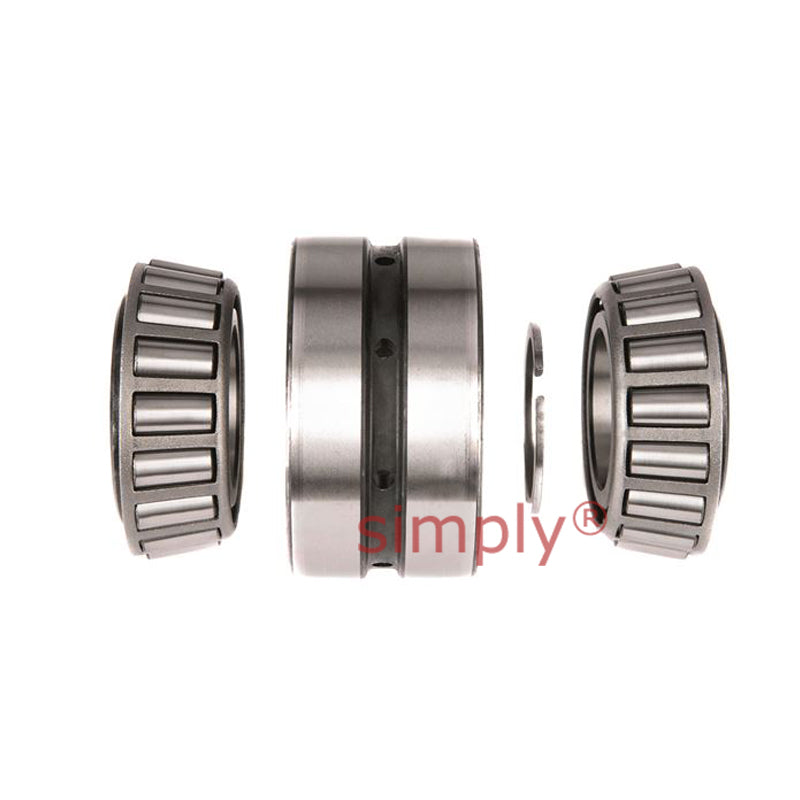

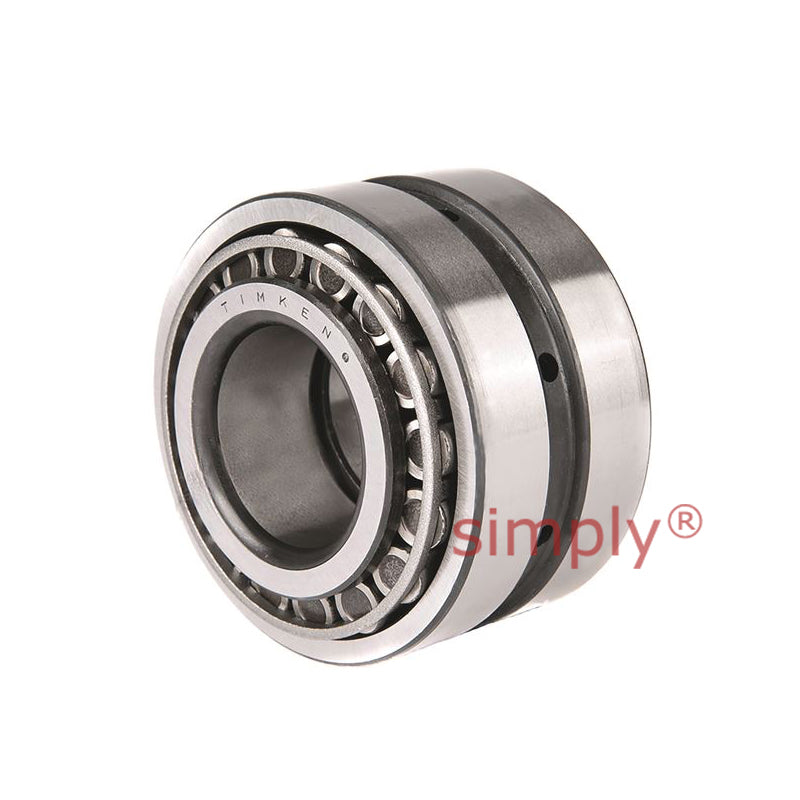

• Timken L163149/L163110CD TDO Double Outer Race Taper Roller Bearing 14x17.5x5.375x4.375 inch
  • Timken L163149/L163110CD TDO Double Outer Race Taper Roller Bearing 14x17.5x5.375x4.375 inch
1 2

SKU: L163149/L163110CD-TIM

Timken L163149/L163110CD TDO Double Outer Race Taper Roller Bearing 14x17.5x5.375x4.375 inch

Timken L163149/L163110CD TDO Double Outer Race Taper Roller Bearing 14x17.5x5.375x4.375 inch
€17.252,95 ex VAT
€17.252,95 ex VAT
Sale Sold out

Low stock

Price Break
10+ €14.289,92
20+ €14.142,60
30+ €13.995,28
40+ €13.847,96
50+ €13.700,64
75+ €13.406,00
100+ €13.111,37
200+ €12.816,73
250+ €12.522,09
500+ €12.080,14
1000+ €11.638,18

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
TDO_DOR_HEAD
Brand / Quality:
Timken - High Quality
Inside Diameter:
355.6mm = 14 inch
Outside Diameter:
444.5mm = 17.5 (17-1/2) inch
Width:
136.53mm = 5.375 (5-3/8) inch
Technical
d 355.6mm = 14 inch
D 444.5mm = 17.5 inch
T 136.522mm = 5.375 inch
C 111.125mm = 4.375 inch
Dynamic (1) C1 1280000N
Factors (5) e 0.31
Factors (5) Y1 2.2
Factors (5) Y2 3.27
Dynamic (2) C90 190000N
Dynamic (2) Ca90 100000N
Dynamic (2) C90(2) 331000N
Factors (5) K 1.9
Shaft max shaft fillet radius R(3) 3.6mm = 0.14 inch
Shaft backing shoulder diameter db 374mm = 14.72 inch
Housing max shaft fillet radius r(3) 1.5mm = 0.06 inch
Housing backing shoulder diameter Da 430.02mm = 17.04 inch
G1 3210
G2 621
Cg 0.184
