SKU: KX20-INA

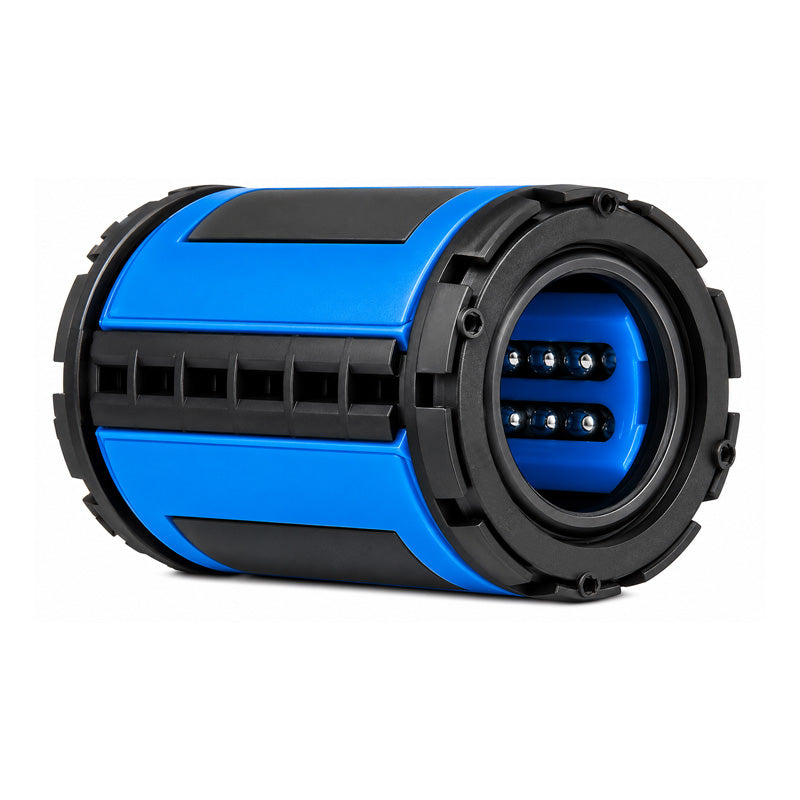

INA KX20 Imperial Closed Self Aligning Linear Ball Bushing with Gap Seals 1-1/4x2x2-5/8 inch
INA KX20 Imperial Closed Self Aligning Linear Ball Bushing with Gap Seals 1-1/4x2x2-5/8 inch
Out of stock
Description
Description
|
INA KX Imperial Self Aligning Linear Ball Bearings: These heavy duty range linear ball bearing and housing units have particularly high load carrying capacity and have an angular adjustment facility for compensation of misalignments. KX linear ball bearings can compensate misalignment of up to ±40 deg. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, compensates misalignments, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 50.8mm = 2 inch
- Width:
- 66.68mm = 2.625 (2-5/8) inch
Technical
Technical

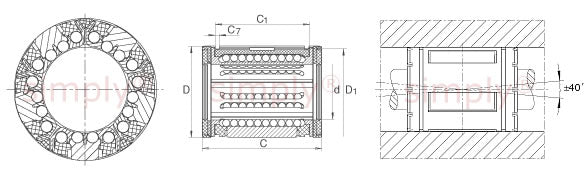

| d | 1-1/4 inch |
|---|---|
| D | 2 inch |
| C | 2-5/8 inch |
| Number of rows of balls | 10 |
| C1 | 2.011 inch |
| C7 | 0.068 inch |
| d1 | 1.886 inch |
| Mass | 0.475 lbs |
| Basic dynamic load rating C | 1490 lbf |
| Basic static load rating C0 | 1190 lbf |
